PVC Pipe Extrusion Machine
PVC Pipe Extrusion Machine can produce PVC Pipe, UPVC Pipes for water supply and drainage, electric conduit. Pipe diameter range 16-630mm. Different model.
PVC UPVC Pipe Production Process
Material Mixing-Extruder-Mould-Vacuum Calibrating Tank-Water Cooling Tank-Haul Off Machine-Cutting Machine-Stacker
Details of PVC Pipe Production Line

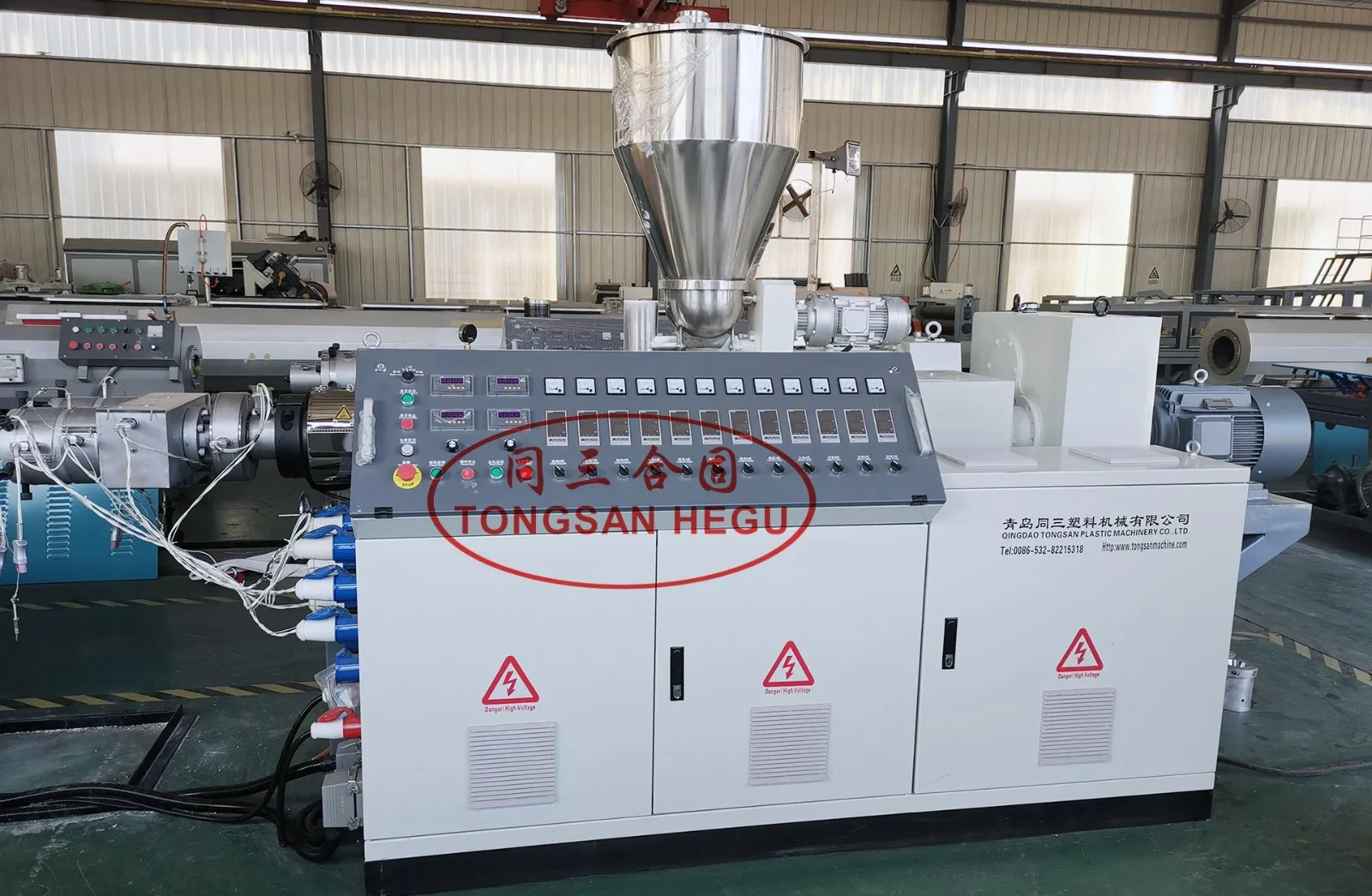

Conical Double Screw Extruder

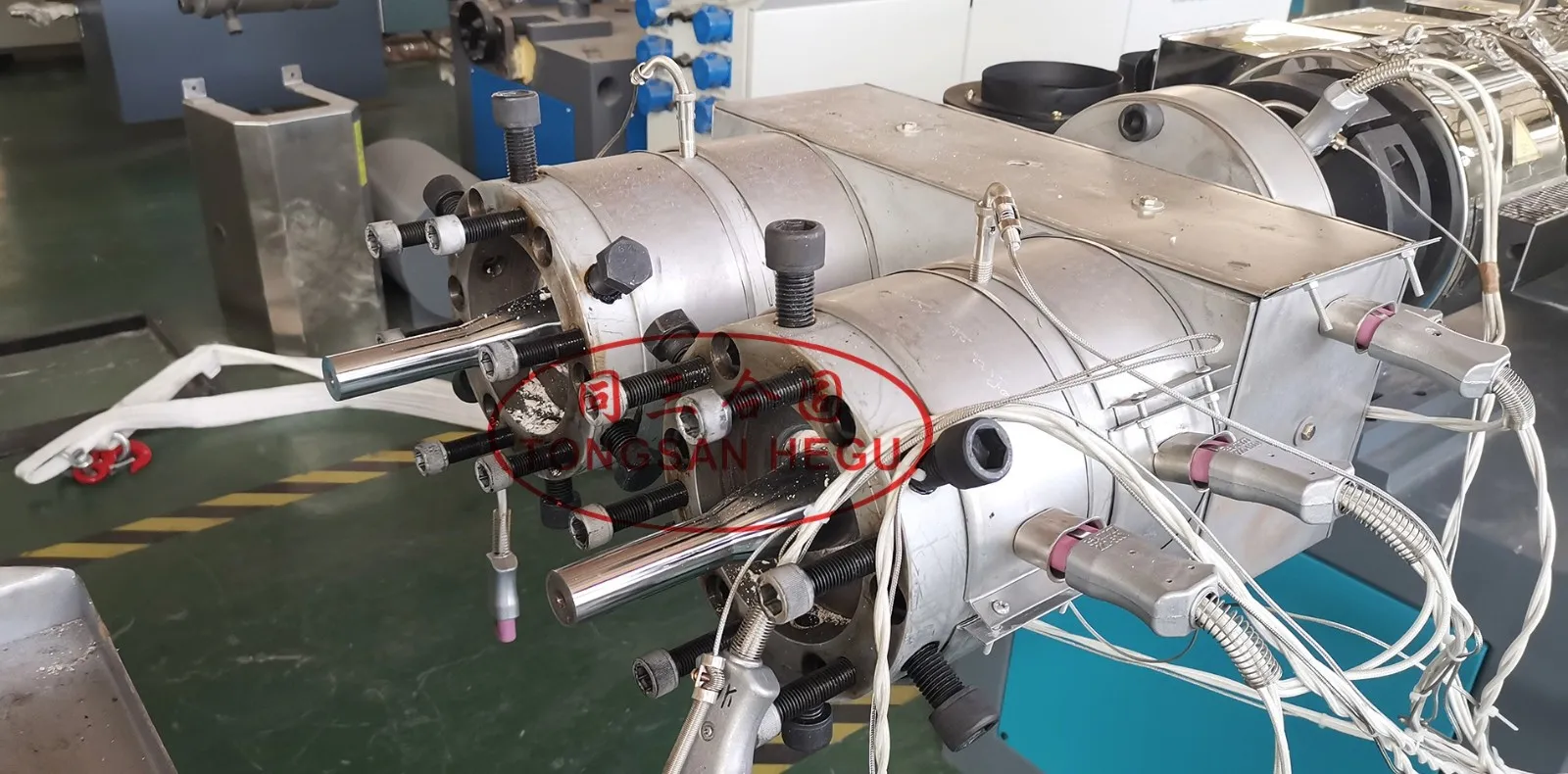

Extrusion Mould

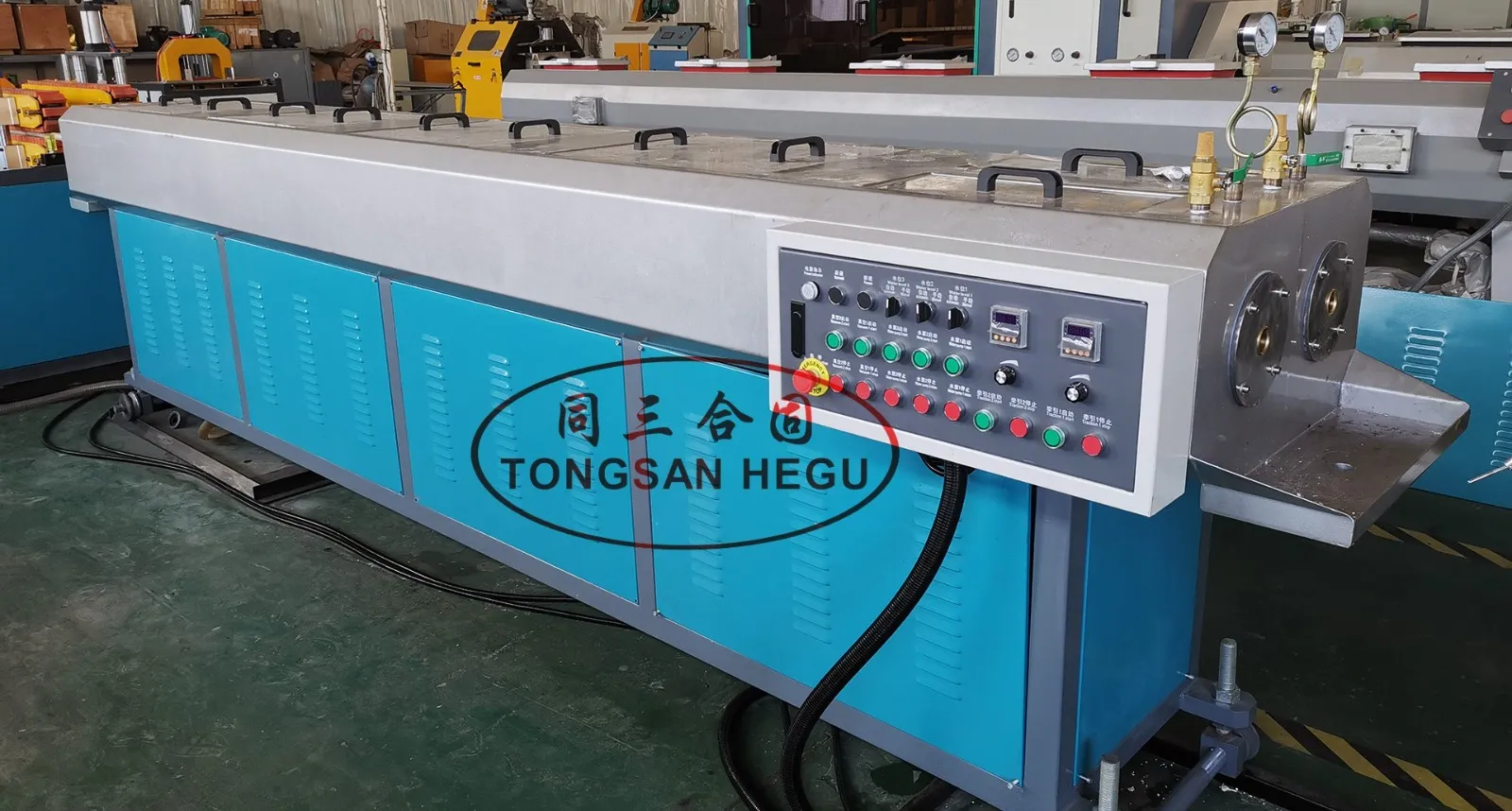

Vacuum Calibrating and Water Cooling Tank

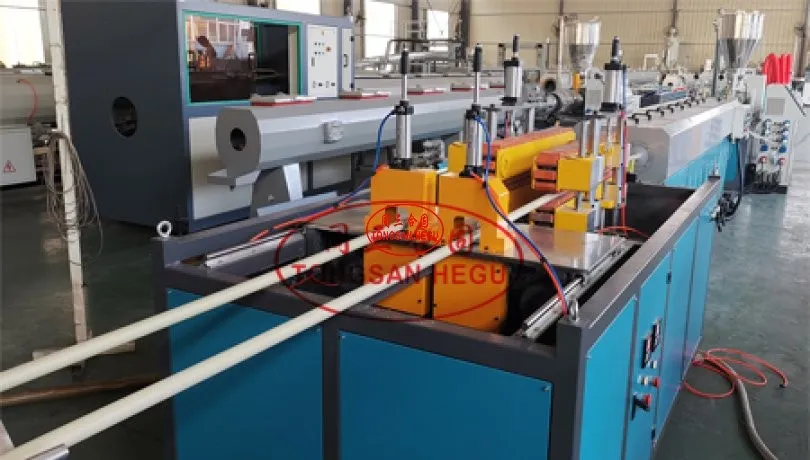

Haul Off and Cutter Stacker
PVC Pipe Extrusion Machine Model
|
Mode
|
Pipe range (mm) |
Extruders
|
Max. output (kg/h) |
Total power (kw) |
Line length (m) |
|
TS-50*2 |
16-50 |
SJSZ55/110 |
150 |
60w |
20m |
|
TS-63 |
16-63 |
SJSZ51/105 |
120 |
45w |
20m |
|
TS-110 |
50-110 |
SJSZ55/110 |
150 |
60w |
24m |
|
TS-160 |
63-160 |
SJSZ65/132 |
300 |
100w |
24m |
|
TS-250 |
110-250 |
SJSZ80/156 |
400 |
120w |
28m |
|
TS-315 |
160-315 |
SJSZ 80/156 |
400 |
160w |
28m |
|
TS-450 |
250-450 |
SJSZ 92/188 |
700 |
200w |
36m |
|
TS-630 |
315-630 |
SJSZ92/188 |
700 |
230kw |
36m |
Auxiliary Machines for PVC Pipe
- 1. Belling Machine
- 2. Printing Machine
- 3. Threading Machine
- 4. Slotting Machine
