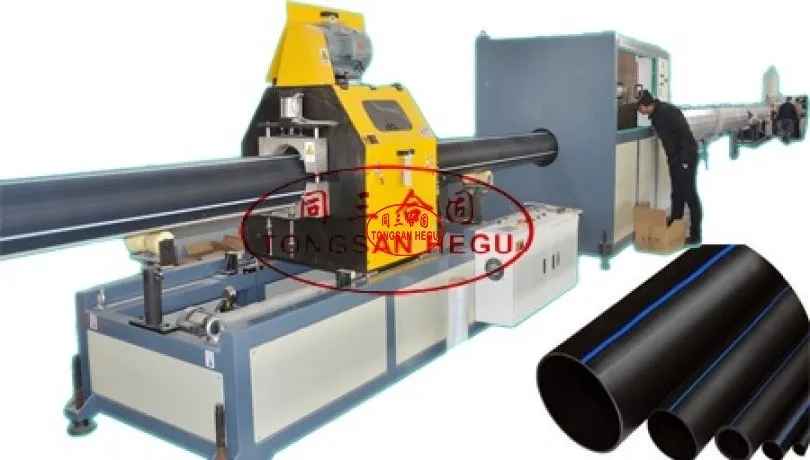

HDPE Pipe Extrusion Line
HDPE Pipe Extrusion Machine produce HDPE Pipes for Gas and Water Supply, Cable Protection etc with High Speed, High Capacity to save production cost.
HDPE Pipe Extrusion& Manufacturing Process
Our HDPE Pipe extrusion line is engineered for seamless operation, featuring:
Material Mixer
Ensures uniform blending of HDPE granules for consistent pipe quality.

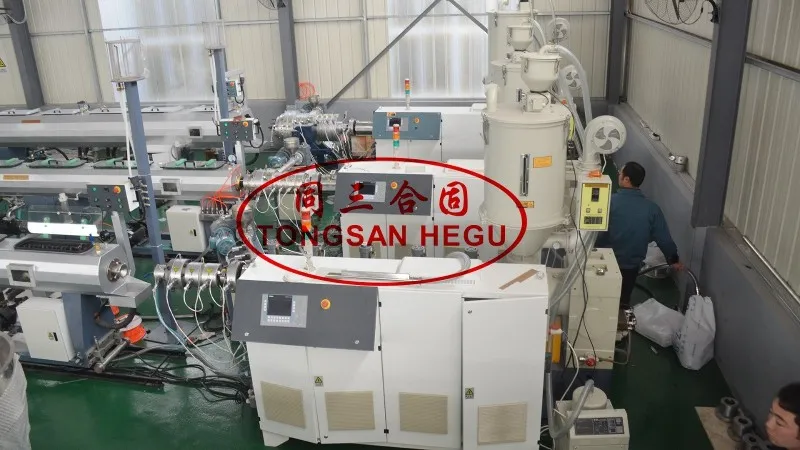

Extruder
Equipped with a high-torque screw for rapid melting and homogenization.

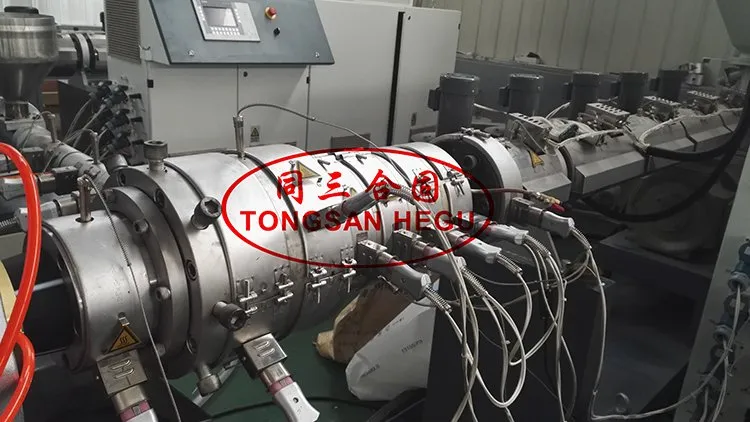

Mould
Precision-designed die head for accurate pipe dimensions.
Calibrating Tank
Vacuum calibration stabilizes pipe diameter and wall thickness.
Water Cooling Tank
Rapid cooling solidifies pipes while maintaining structural integrity.

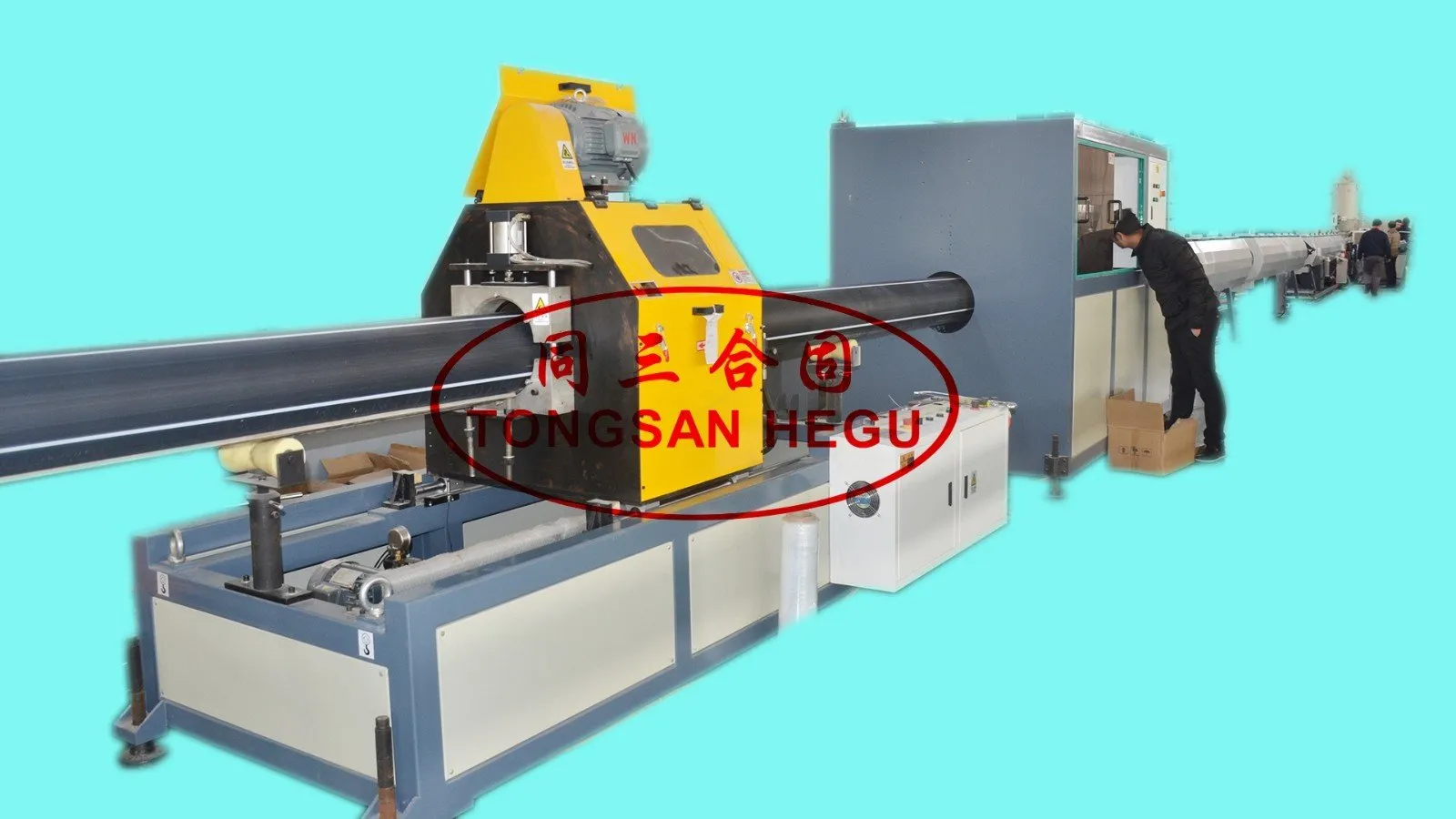

Haul-Off
Automated traction unit maintains steady pipe movement.
Cutter
Programmable cutting for exact lengths, minimizing waste.
Stacker
Automated stacking for organized output.
Winder Options
Double Position Winder: Ideal for 20–63mm pipes, enabling continuous production with dual reel switching.
Single Position Winder: Handles larger diameters up to 110mm, ensuring stability for heavy-duty pipes.
HDPE Pipe Extrusion Line Model
|
Model |
Screw Diameter |
L/D |
Pipe Range (mm) |
Motor Power (kw) |
Total Power (kw) |
Line Length (M) |
|
PE-63 |
65mm |
33:1 |
16-63 |
37 |
80 |
24 |
|
PE-110 |
65mm |
33:1 |
75-110 |
55 |
110 |
30 |
|
PE-160 |
75mm |
33:1 |
90-160 |
90 |
150 |
32 |
|
PE-250 |
75mm |
33:1 |
110-250 |
110 |
200 |
42 |
|
PE-315 |
90mm |
33:1 |
160-315 |
160 |
240 |
44 |
|
PE-400 |
90mm |
33:1 |
200-400 |
185 |
300 |
50 |
|
PE-500 |
120mm |
33:1 |
250-500 |
280 |
350 |
56 |
|
PE-630 |
120mm |
33:1 |
315-630 |
280 |
480 |
56 |
|
PE-800 |
150mm |
33:1 |
400-800 |
315 |
550 |
72 |
Welcome your contact to start HDPE Pipe production!
