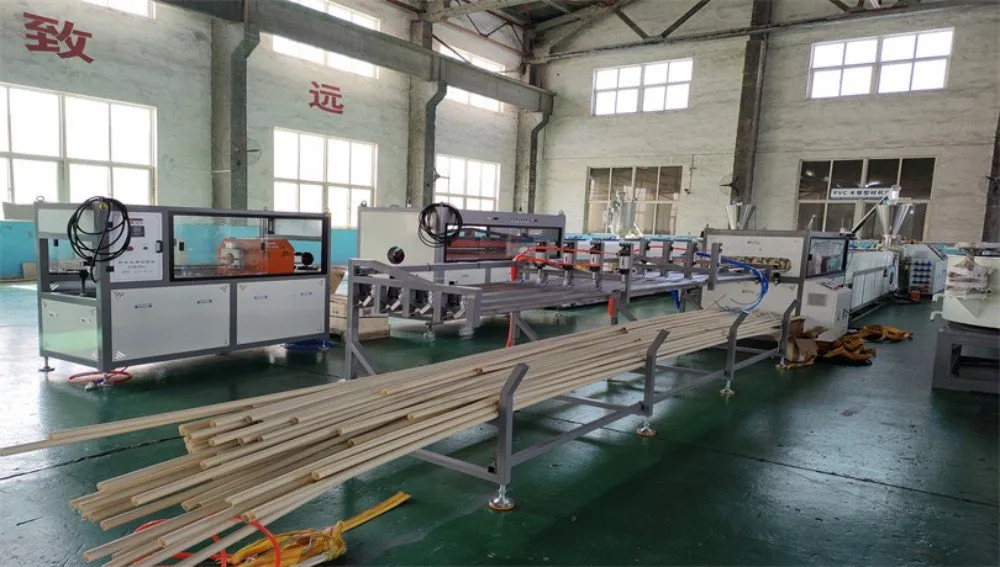

This is high speed PVC pipe production line which can produce 4 pieces of PVC pipes at the same time, the suitable production diameter is 16-40mm. we can also equip the online laser printer machine for this line.
And also 4 cavities PVC pipe belling machine automatic online is also avaliable.
16-32mm Four Cavity PVC UPVC Electric conduit Pipe Making Machine
4 cavity output PVC pipe extrusion machine can produce 16-32mm PVC Pipe for electric conduit, water supply and drainage PVC UPVC pipe.
The advantage is it can provide 4 piece PVC pipes at the same time, improved prodcution efficiency.
4 cavity PVC Pipe Extrusion Machine Production Process:
Raw Material Mixing-Feeder-Extruder- Die Head and Mould- Vacuum Calibration & Water Cooling Tank-Double Haul Off and Cutting Machine- Stacker
4 Cavity PVC Electric Pipe Production Line Model:
|
Model |
Pipe diameter (mm) |
Extruder type |
Production speed(m/min) |
Capacity (kg/h) |
Installed power (kw) |
|
TS-40 |
16-40 |
SJSZ-65/132 |
1-10 |
150-200 |
60 |
PVC Pipe Extrusion Line Equipment list and pictures:
1. Conical twin screw extruder:
2. PVC pipe mold: Mold material is 45 # quenched and tempered steel
3. Vacuum calibration tank: resistant to high pressure and corrosion resistance.

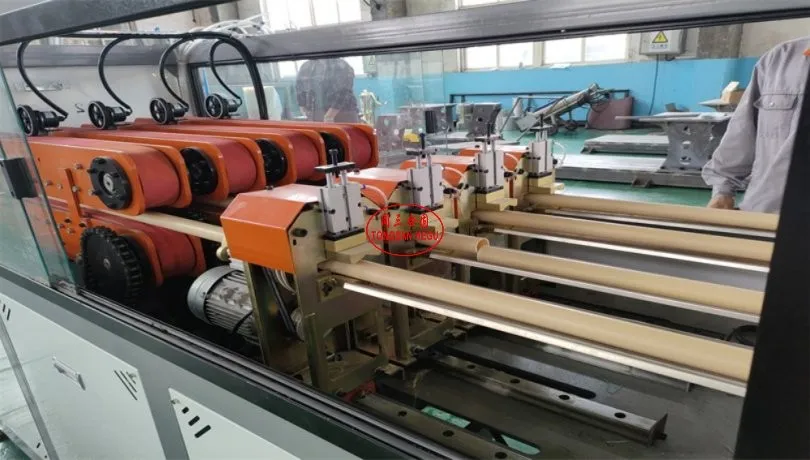

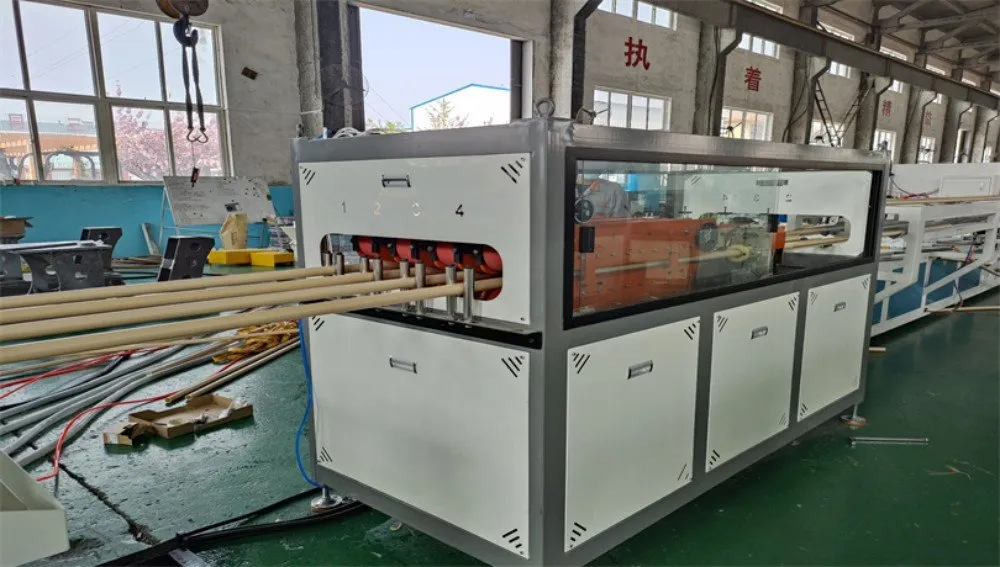

4. Hauling machine: It adopts frequency control mode.
5. Cutting machine: automatic cutting
6. Stacker: The pipe can be placed on the top of its.

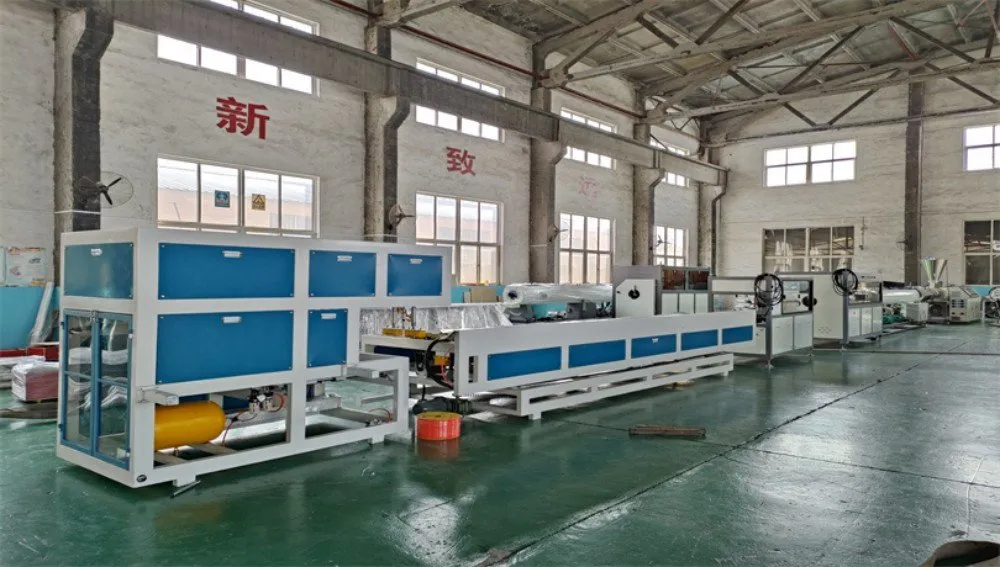

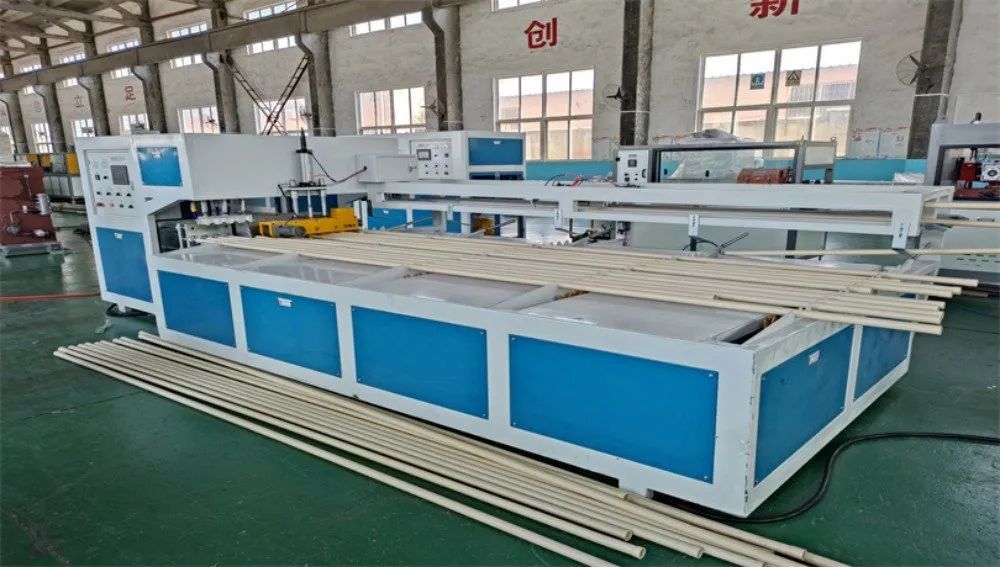

7. Online four cavity PVC pipe belling machine
