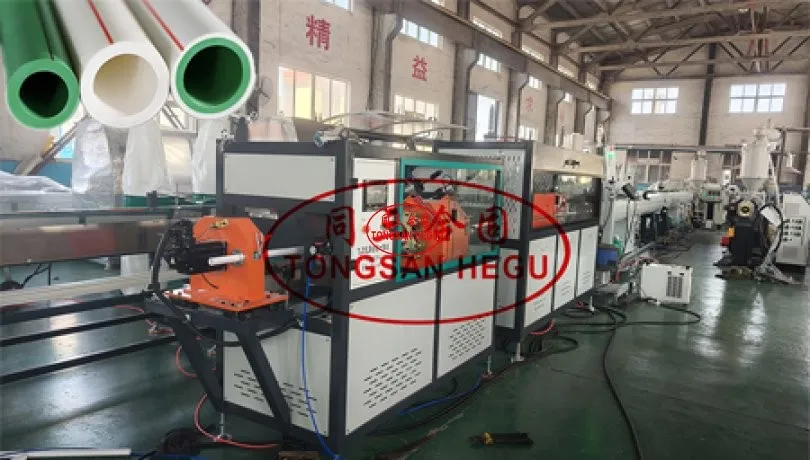

PPR Pipe Extrusion Machine can produce single layer PPR pipe, and multi layer PPR glass fiber pipe. These pipes are widely used in Hot and Cold water supply.
PPR Pipe Extrusion Machine Features
1. This production line aim at the characteristic of the PPR pipes.
2. It adopts high efficiency single screw extruder can equipped with the Siemens PLC controlling system
3. It can realize the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PE-RT, PEX pipe.
PPR Pipe Extrusion Machine: Components & Process

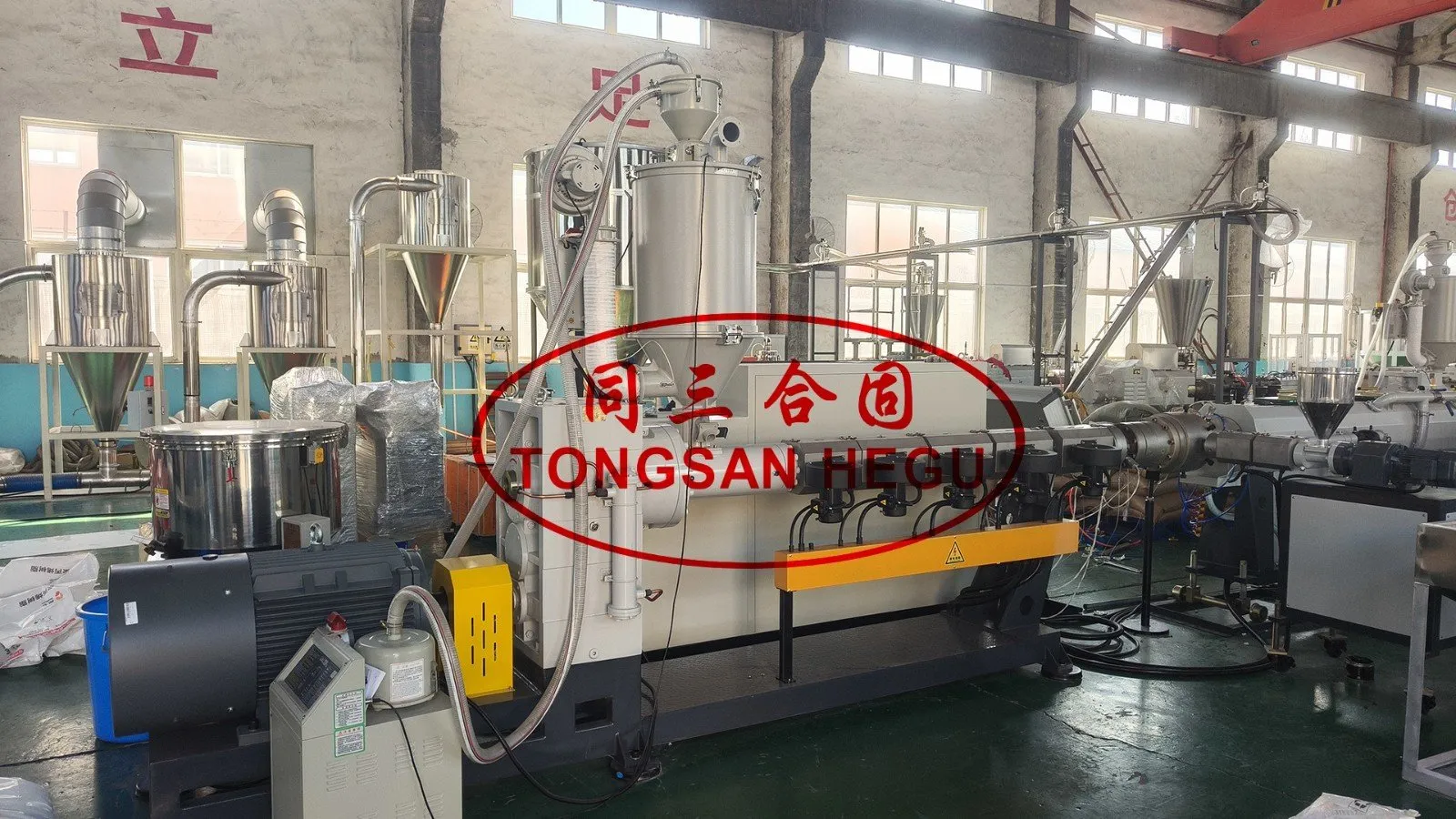

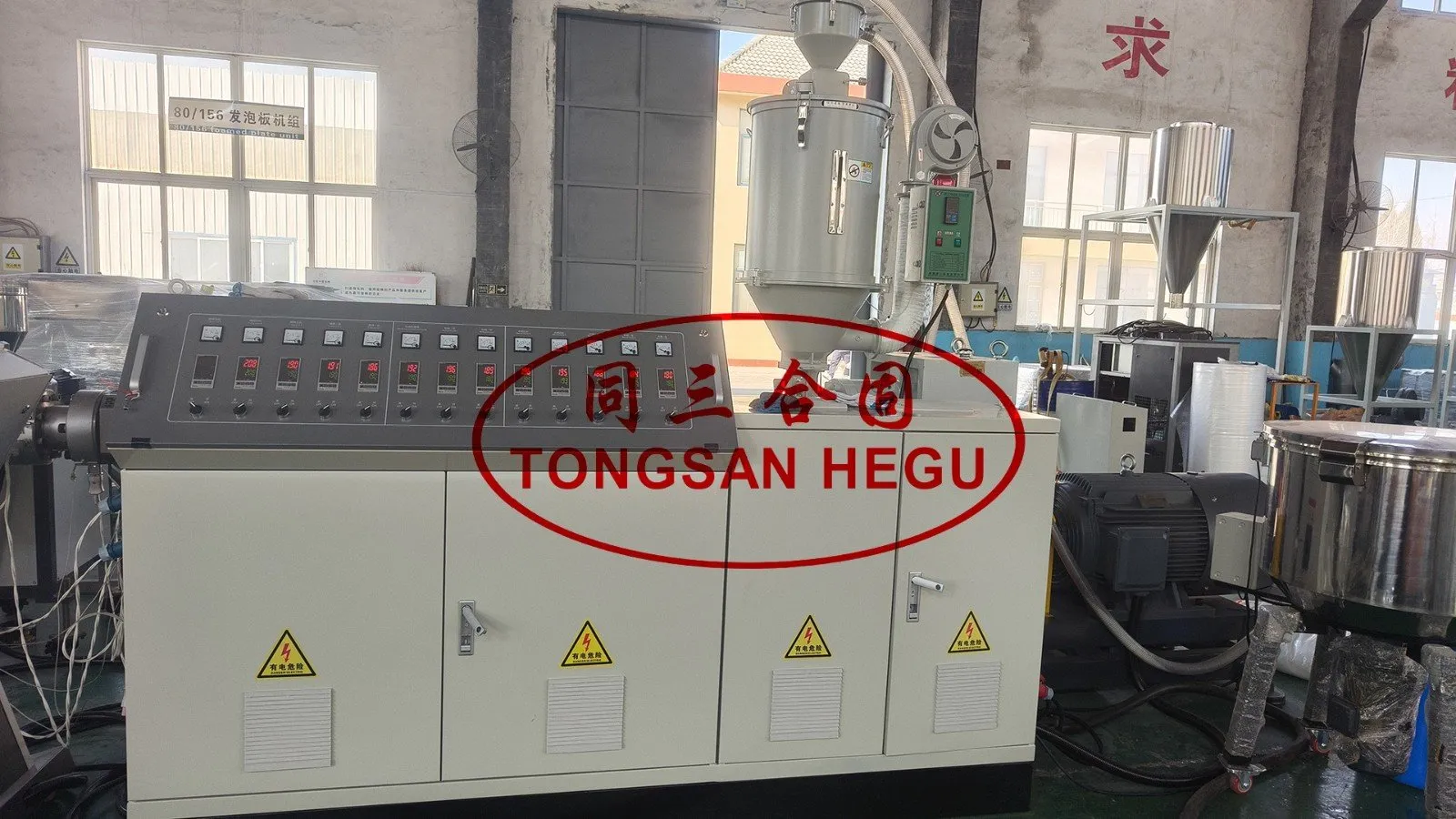

Extruder: Melts and homogenizes PPR raw material, ensuring consistent viscosity for uniform pipe formation.
Mould: Shapes the molten PPR into precise diameters, catering to specifications from 16mm to 110mm.
Calibrating Tank: Uses vacuum cooling to stabilize dimensions, guaranteeing exact pipe diameter and wall thickness.
Water Cooling Tank: Rapidly cools the pipe to solidify its structure while maintaining roundness.
Haul-Off Unit: Automatically pulls the pipe at controlled speeds, ensuring smooth, tension-free production.
Cutter: Slices pipes into predefined lengths with accuracy, minimizing material waste.
Stacker: Collects and organizes finished pipes for hassle-free packaging and transport.
PPR Pipe Extrusion Line Model
|
Model |
PPR-32 |
PPR-63 |
PPR-110 |
|
Extruder |
SJ50/30 |
SJ65/33 |
SJ90/33 |
|
Diameter range |
φ16-φ32 |
φ20-φ63 |
φ20-φ110 |
|
Capacity (kg/h) |
60 |
120 |
220 |
|
Air pressure(≥0.6MPa) (m3/h) |
0.3 |
0.3 |
0.5 |
|
Cooling water flow rate (m3/h) |
2 |
3 |
4 |
|
Total power (kw) |
45 |
80 |
145 |
|
Dimension (mm) |
20000*3000*1600 |
26000*3500*1750 |
35000*4000*1750 |
|
Weight (kg) |
3500 |
4000 |
4500 |
