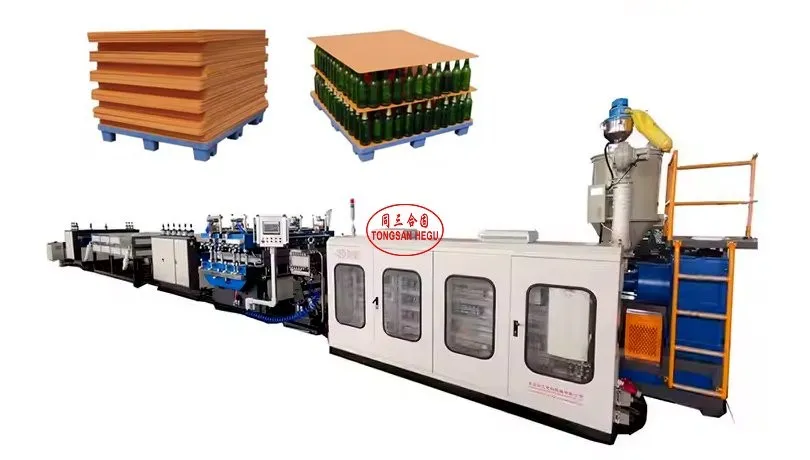

1200mm PP hollow corrugated flute sheet making machine
PP corrugated plastic sheet making production machine can produce the sheet with the width of 1000-2800mm. We can provide the all auxilairy machine for plastic PP hollow sheet to make box.The PP hollow sheet/corrugated sheet is widely used in fileds of machinery, electron, appliance, food, advertising, interior decoration material, glass, agricultural product etc packing and transporting.
Why choose Tongsanhegu for the PP hollow corrugated sheet project?
1. Smart automatic easy to operate PP hollow
corrugated sheet extrusion machine production line Intelligent, automatic and easy to operate-the Generation PP plastic hollow board and corrugated board extrusion line launched by Qingdao Tongsanhegu is very popular in the market.
Through online guidance, we have remotely assisted many new customers to successfully complete the installation and operation of the machine in a short time, and produce qualified PP hollow corrugated board.This is even more commendable in the face of difficult global travel.
2. High capacity 0-80% Filler (Calcium) PP hollow corrugated sheet making machine
Tongsanhegu have all series H-Line and S-Line high quality PP hollow corrugated sheet machine, the width of the products is 1220-3000 mm, and the thickness is 1 mm-12 mm.The extrusion line can reach 2-10 m/min, the high capacity at 200-600 kg/h. We have customer in India, Dominia, Mexico, Ecuador, Uzbekistan, Vietnam, etc. We have won praise from customers for the quality of our machines and service. Tongsanhegu continues to innovate with the industry's leading level. Looking forward to working with you for a win-win cooperation.
3. Turnkey project for package box making machine
By using Tongsanhegu PP PE Hollow Profile Sheet Corrugated Sheet Extrusion Machine, it greatly save your material cost and production cost. We provide high out production line with professional technology support, and auxiliary machine for package box making machines, such as printing machine, automatic die cutting machine, cartonplast box making machine, welding machine and edge sealing machine.
4. All series PP PE Hollow corrugsted sheet machine model
|
Model |
Sheet width |
Sheet thickness |
Extruder Model |
Motor Power |
|
TSGZB-1400 |
1250mm |
2-6,8-12mm |
100/36 |
55-75kw |
|
TSGZB-1800 |
1700mm |
2-6,8-12mm |
120/36 |
75-90kw |
|
TSGZB-2300 |
2150mm |
2-6,8-12mm |
120/36 |
90-110kw |
|
TSGZB-2600 |
2450mm |
2-6,8-12mm |
120/36 |
90-110kw |
|
TSGZB-3000 |
2800mm |
2-6,8-12mm |
150/36 |
132kw |
|
TSGZB-2600(F) |
2450mm |
2-6,8-12mm |
120/36&80/36 |
110+37kw |
Detailed Images
High-efficiency Extruder
High quality single screw extruder
Equipped with:
Automatic loader
Dryer
SIEMENS motor
ABB inverter

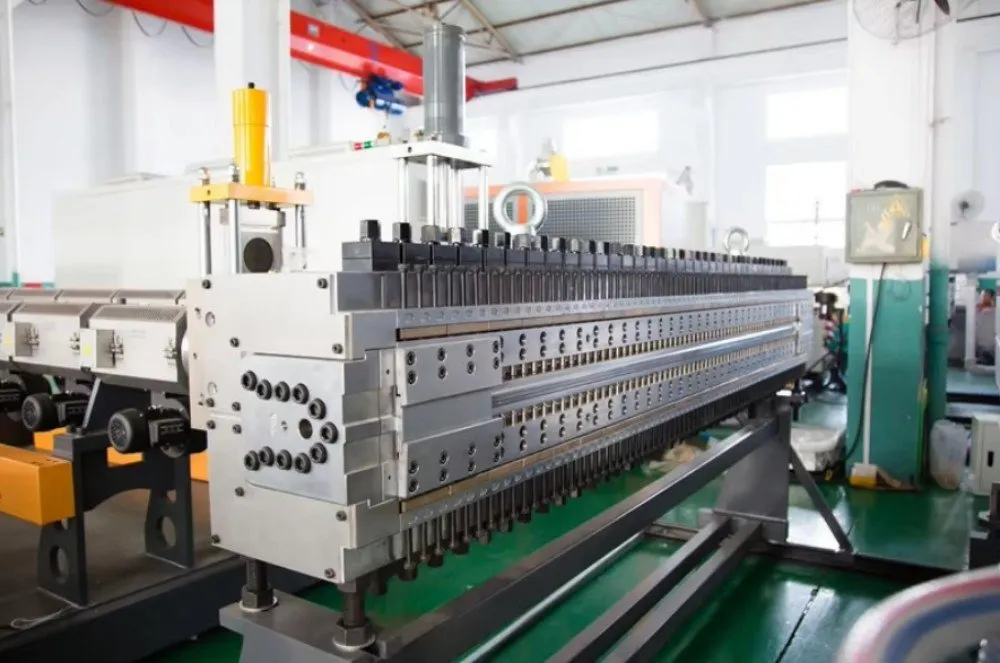

High quality mould
Material: high quality alloy steel
Equipped with:
Screen changer
Melting pump
Accuracy control device
Size can be customized by requirement
Sheet width: 1220 mm---280 0mm
Sheet thickness: 1 mm-15 mm
Calibrating table/Sizing platform
Pneumatic lift control
Vaccum system
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type.
Haul-off device
There are 2 sets of haul-off device in the line.
Adopt the Nitrile rubber roller.
Heating Oven
Material: 304 sainless steel
separately temperature control system
Cooling system
Place in the middle of between oven and second haul-off device.
Make the sheet more flat and harder
Automatic cutter
For side cutting and length cutting
The waste scrap can be recycled.
PLC&HMI control
Corona treatment device
Remove the stress of plate and further improve planeness of the plate.
(Option part)

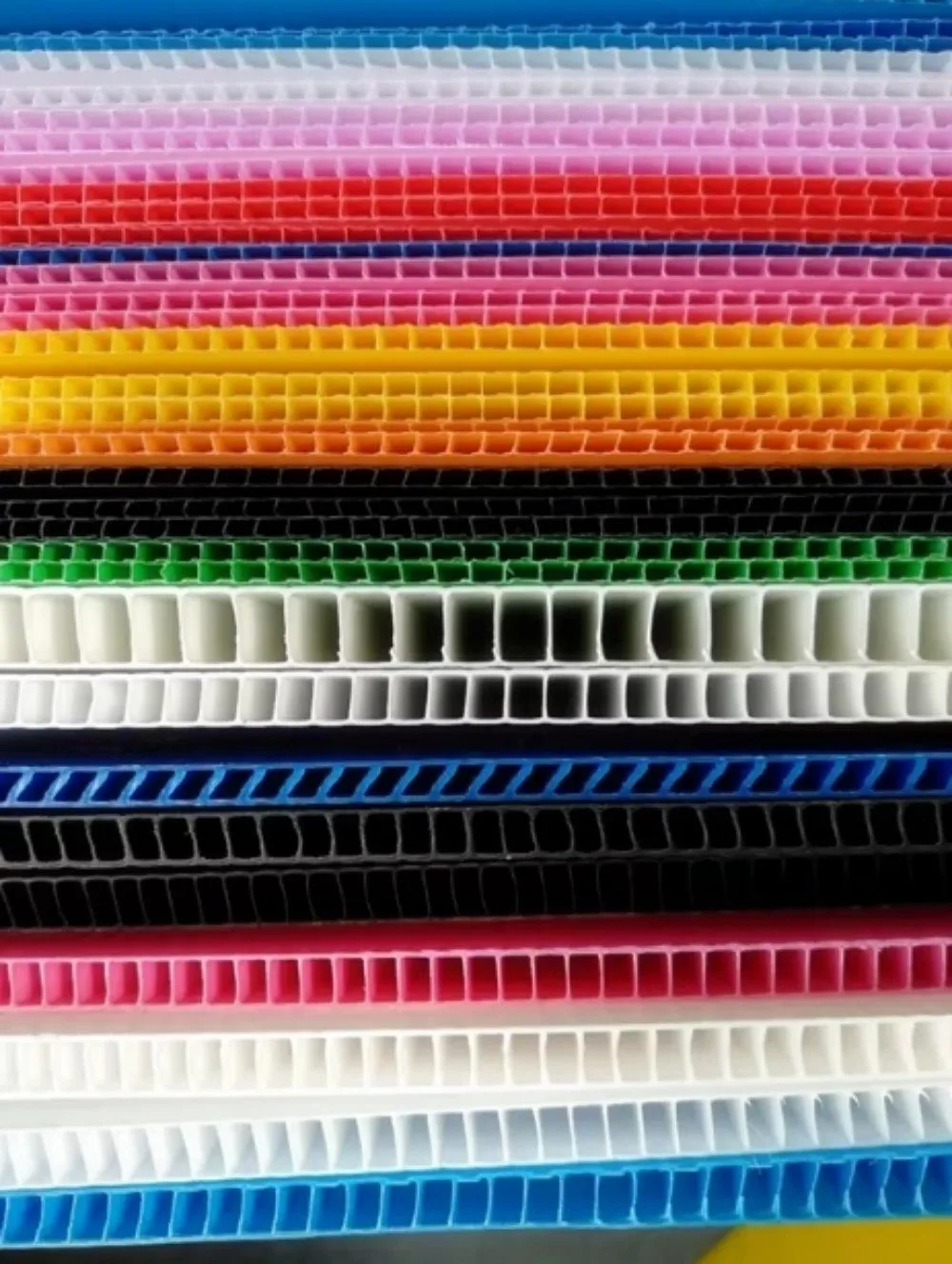

Polypropylene Hollow Sheet is an extruded twin wall plastic sheet consisting of two flat walls connected by vertical ribs. Eco-friendly PP Plastic Hollow Sheet is mainly manufactured from a high impact co-polymer polypropylene (PP) or polyethylene (PE) resin, which can be recycling,washable,durable and reuseable etc. PP corrugated sheet, Plastic Hollow Sheets / Board / Signs has proved that it is suitable in the uses of packaging, advertising, construction, agriculture, industry and Pharmaceutical etc.
