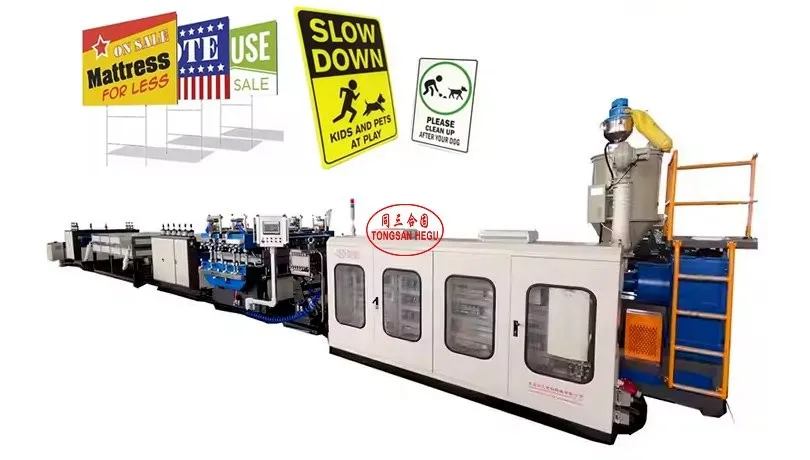

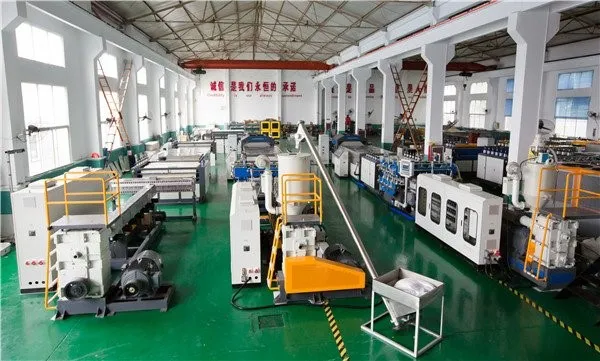

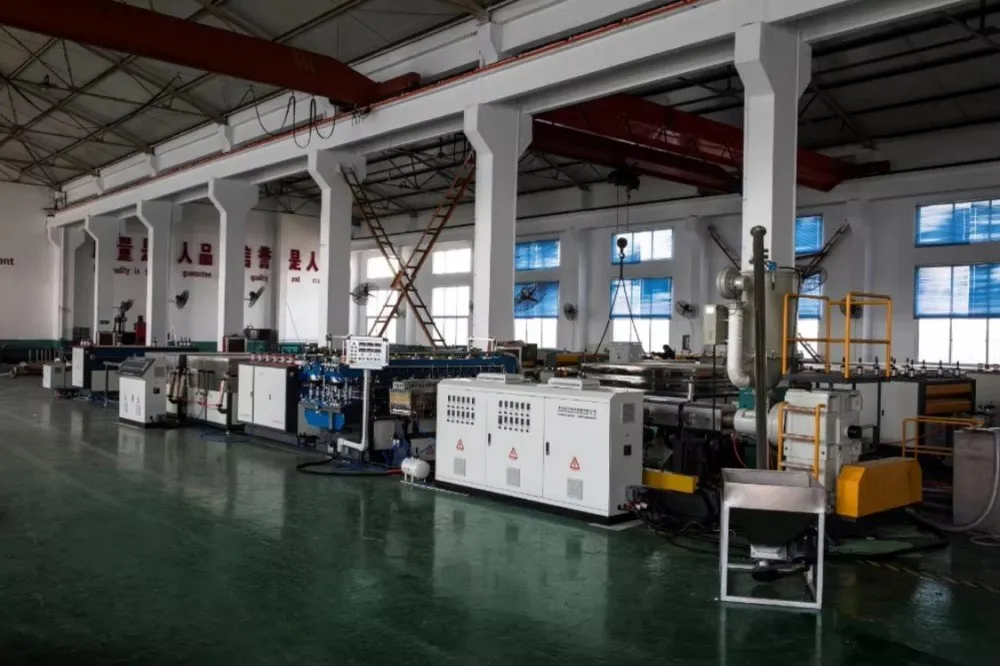

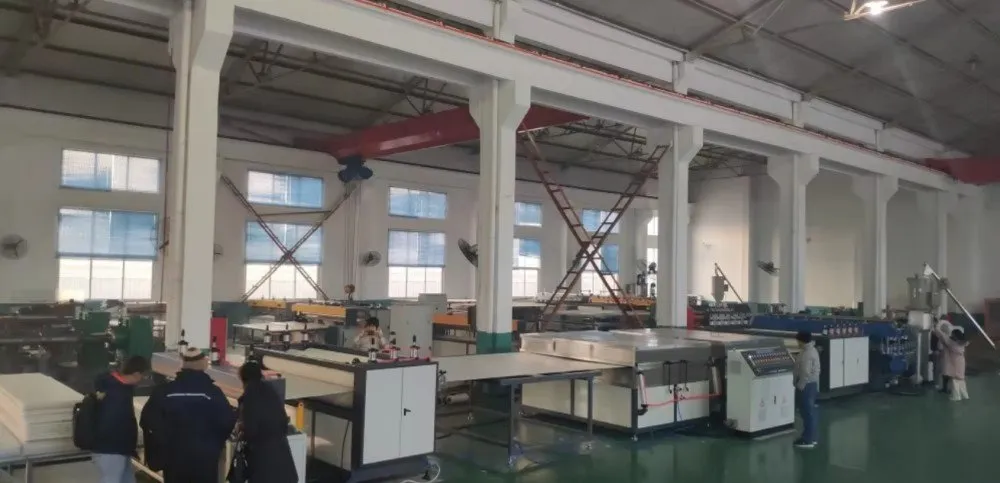

PP hollow correx sheet equipment/multi-layer PP sheet production line
Qingdao Tongsan hollow corrugated sheet making machine can produce the sheet with the width of 1220-2800mm and thickness of 1.5mm-12mm.
PP hollow correx sheet equipment/multi-layer PP sheet production line
We have different models of PP corrugated sheet machine for making different width of final product.
|
Main Technique Parameter |
|||||
|
Model |
TSGZB-1400 |
TSGZB-1860 |
TSGZB-2300 |
TSGZB-2600 |
TSGZB-2600 (Co-extrusion) |
|
Width |
1220mm |
1700mm |
2100mm |
2450mm |
2450mm |
|
Thickness |
2-6/5-10mm |
2-6/5-10mm |
2-6/5-10mm |
2-6/5-10mm |
2-6/5-10mm |
|
Extruder Model |
SJ-90/36 SJ-100/36 |
SJ-100/36 SJ-120/36 |
SJ-120/36 |
SJ-120/36 |
SJ-120/36 SJ-80/36 |
|
Extruder Capacity |
170-190kg/h |
190-250kg/h |
260-300kg/h |
300-350kg/h |
340-420kg/h |
|
Main Motor |
55KW |
55-75KW |
75-90KW |
90-110KW |
110+37KW |
Main Features
1) The plastic hollow sheet is eco-friendly new material in the market.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) The plastic hollow sheet has wide market prospect.
4) Running in a high automatization and intellectualization,no pollution .
5) Excellent Configuration, Stable Operation, High Production Efficiency.
Detailed Images
Loader with dryer system
Stainless steel hopper
Hot air dryer
Agitator

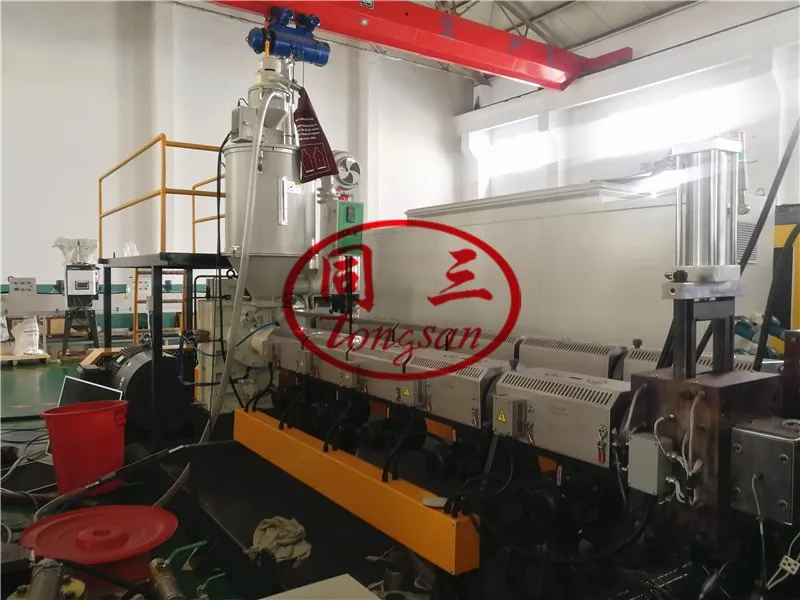

Single Screw Extruder
The specially designed screw and the advanced controlling system ensure excellent plasticization,high output and stable extruding.
We also have the co-extrusion type to use the recycled plastic to reduce the cost with high quality products.

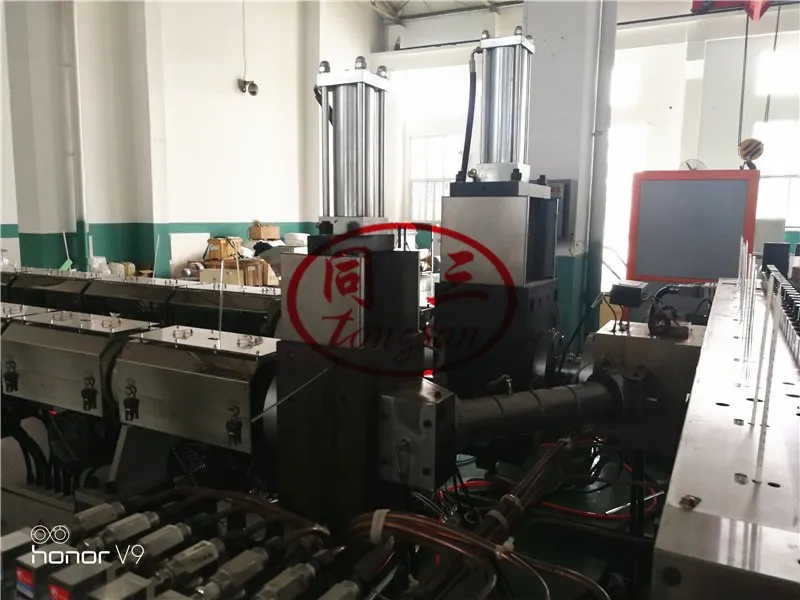

Hydraulic Screen Changer without shutdown
Heating type heating rods
Working pressure 10-20mpa
Quick screen changer of hydraulic system ensure the continuously working of screen changing.Double position combined with special sealing structure guarantee stable operation of screen changer.

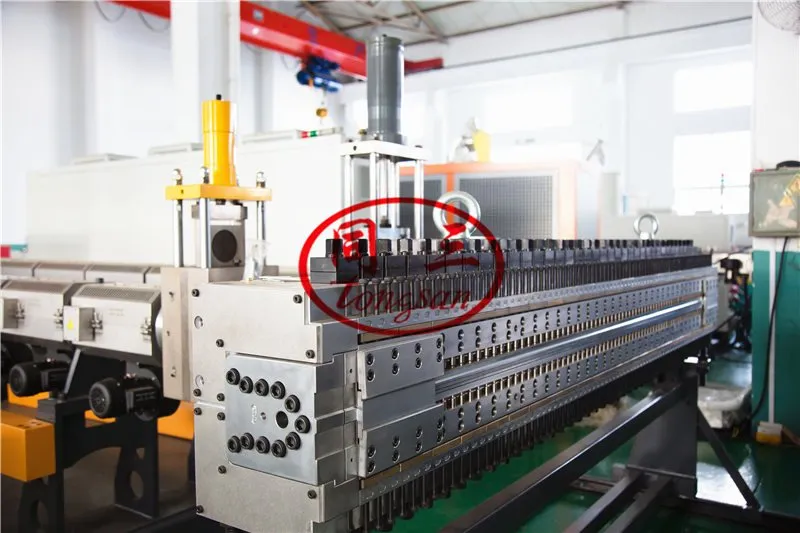

Mold
Mold material Alloy steel forging.
Heating type Heating rods.
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.

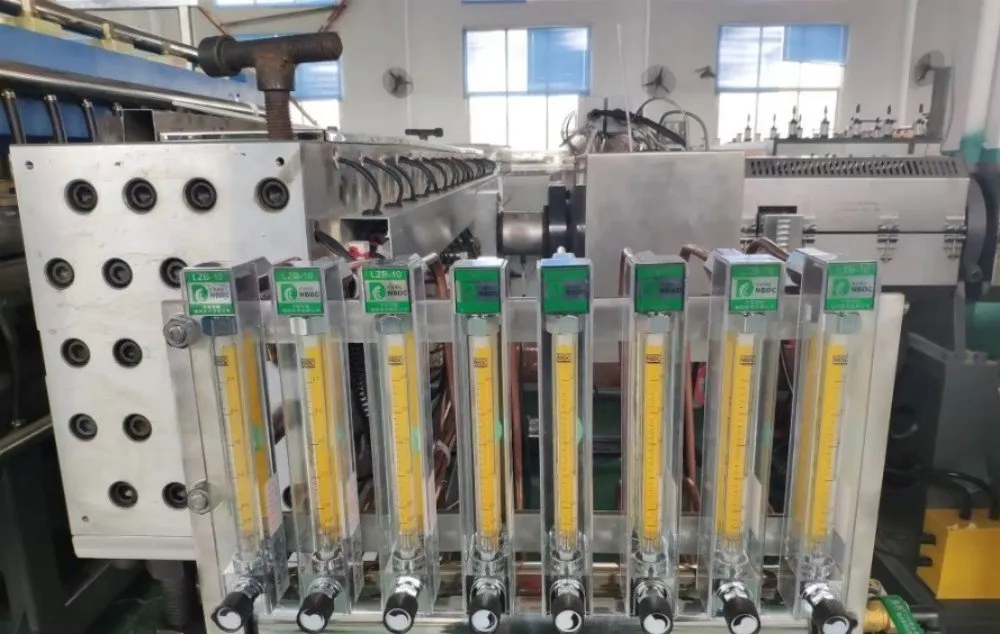

Flowmeter
Air pressure control Barometric flow controller
| Vacuum forming machine | |
| Mold material | Alloy steel casting |
| Cooling medium | Water |
| Calibrating type | Minus pressure molding |
| Vacuum pump power | 11kw |
| Vacuum tank type | Slot type |
| Air fan power | 1.5kw |
| Mold elevation type | Pneumatic |
| Back-and–forth movable distance | 100cm |

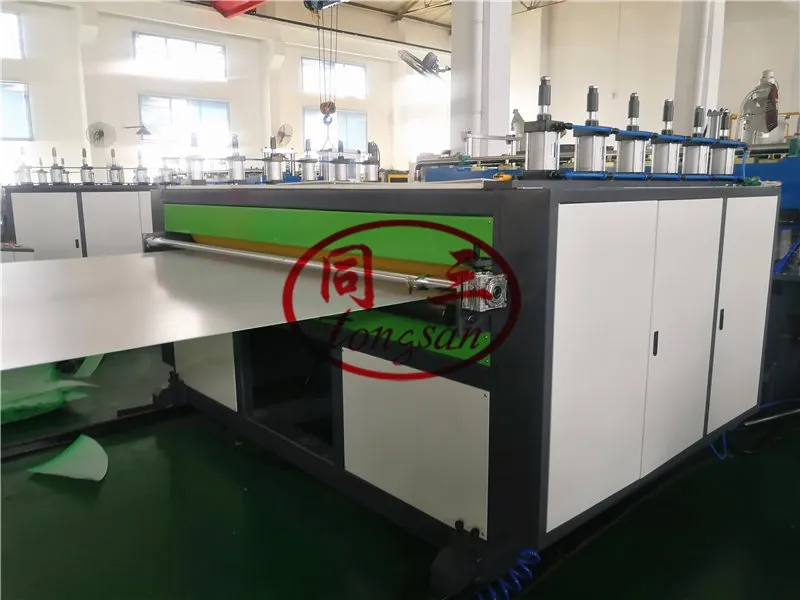

Six –roller pull off machine
| Rubber material | Silicone rubber |
| Pull off line speed | 1-8 m/minute |
| Clamp type | Pneumatic |
|
Motor type |
7.5kw |

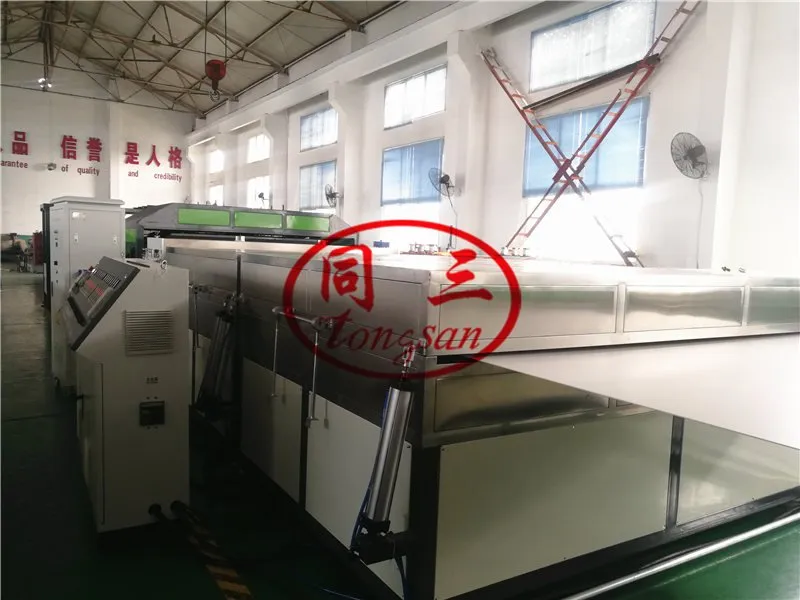

Heating Oven
| Model | 2300 |
| Heating type | Heating rods |
| Heating power | 30kw*2 sets |
| Elevation type | Pneumatic |
| Cover insulation type | Rock wool |

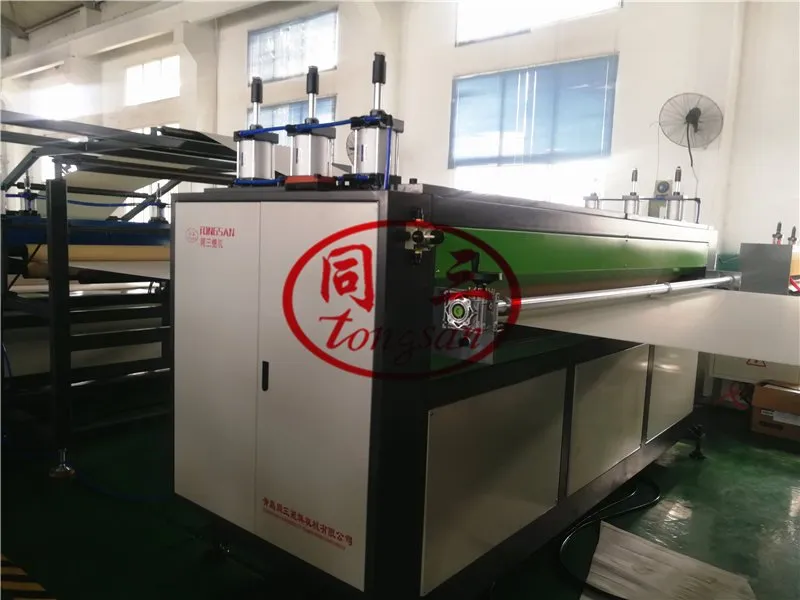

Three–roller pull off machine
| Rubber material | Silicone rubber |
| Pull off line speed | 1-8 m/minute |
| Clamp type | Pneumatic |
| Motor power | 4kw |
Double-side corona
In order to improve the surface tension of the hollow sheet surface, and thereby improve the printing ink fastness, the hollow corrugated sheet surface will under corona treatment, so that the surface produces micro-concave dense holes, plastic surface roughening, increase the surface activity.

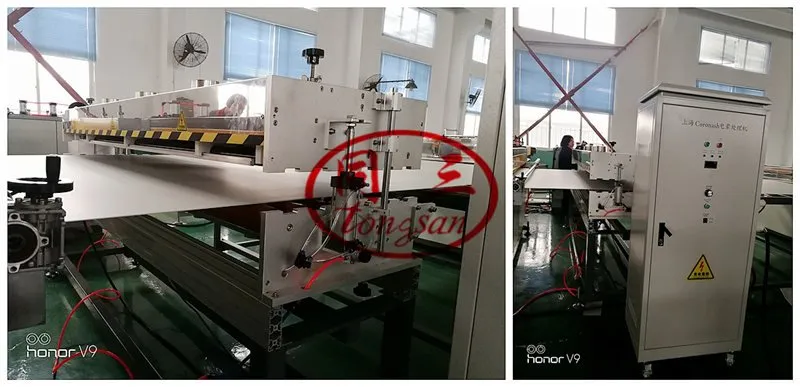

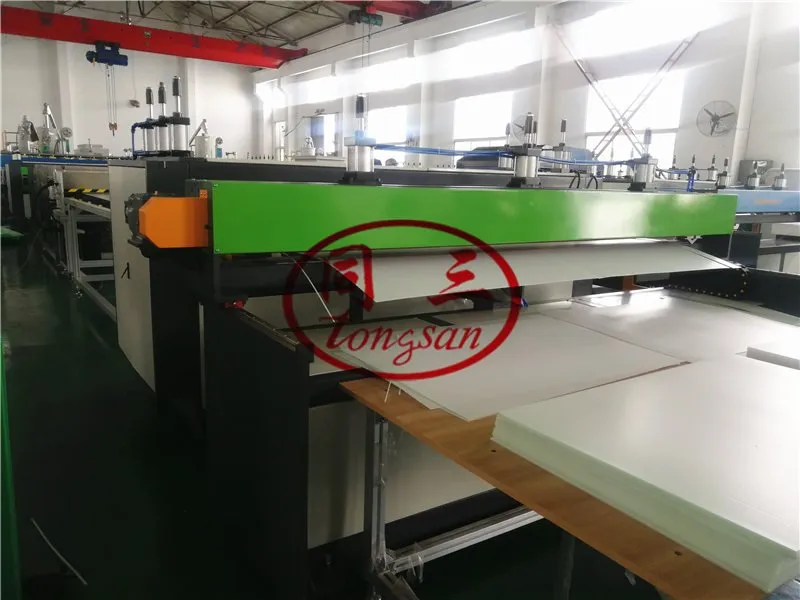

Transverse Cross cutting unit
| Cutting thickness | 8-12mm |
| Clamping type | PPneumatic |
| Metering type | Rotary encoder Autonics brand |
| Power of motor | 2.2kw |
| Cutting type | Automatic |
| Back-and -forth moving type | Pneumatic |

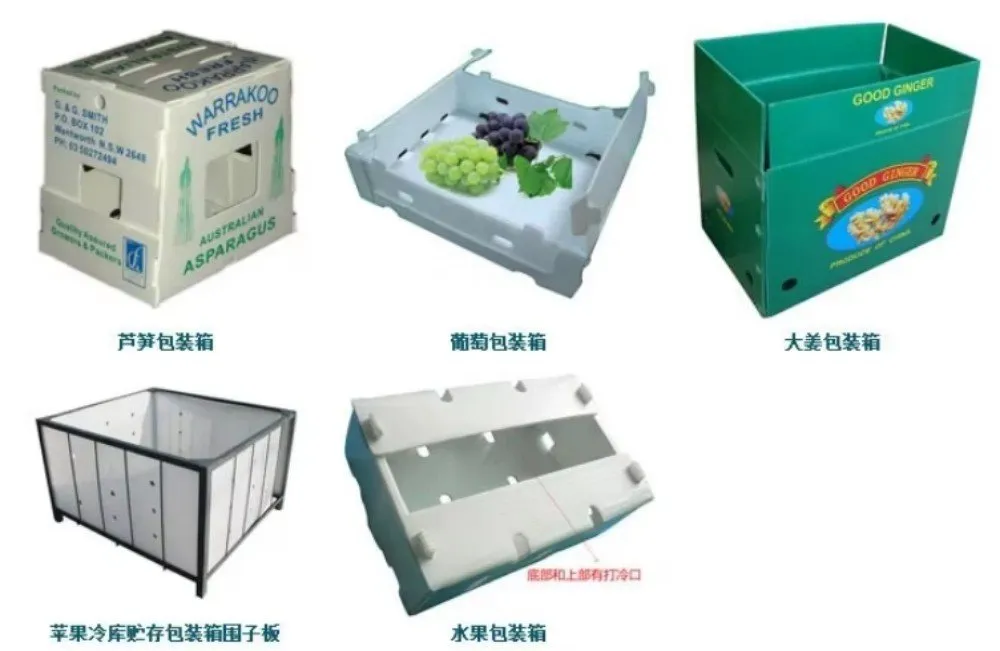

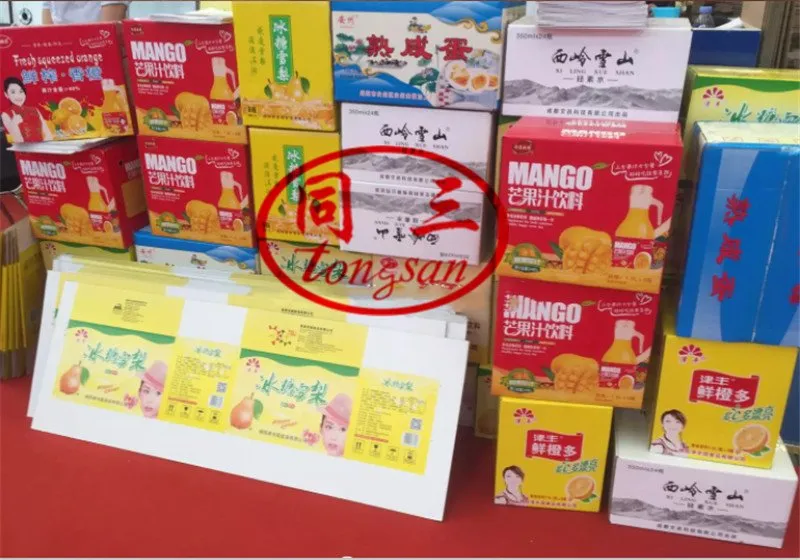

Final Product
The hollow sheet is widely used in machinery,electron, appliance, food, advertising, interior decoration material, glass, agricultural product etc packing and transporting.
With the developing of e-commerce,the container is used largely more and more, the logistics industry proposes high demand for the packing materials which are easier to use and transport, require simply technology and can be finished in short time.

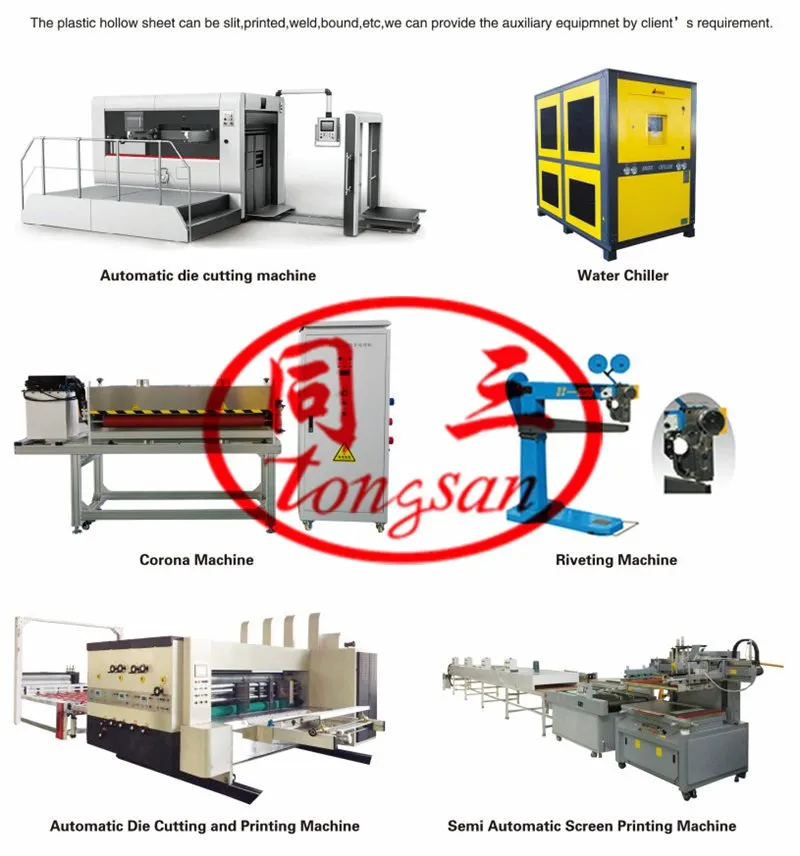

Related Products
