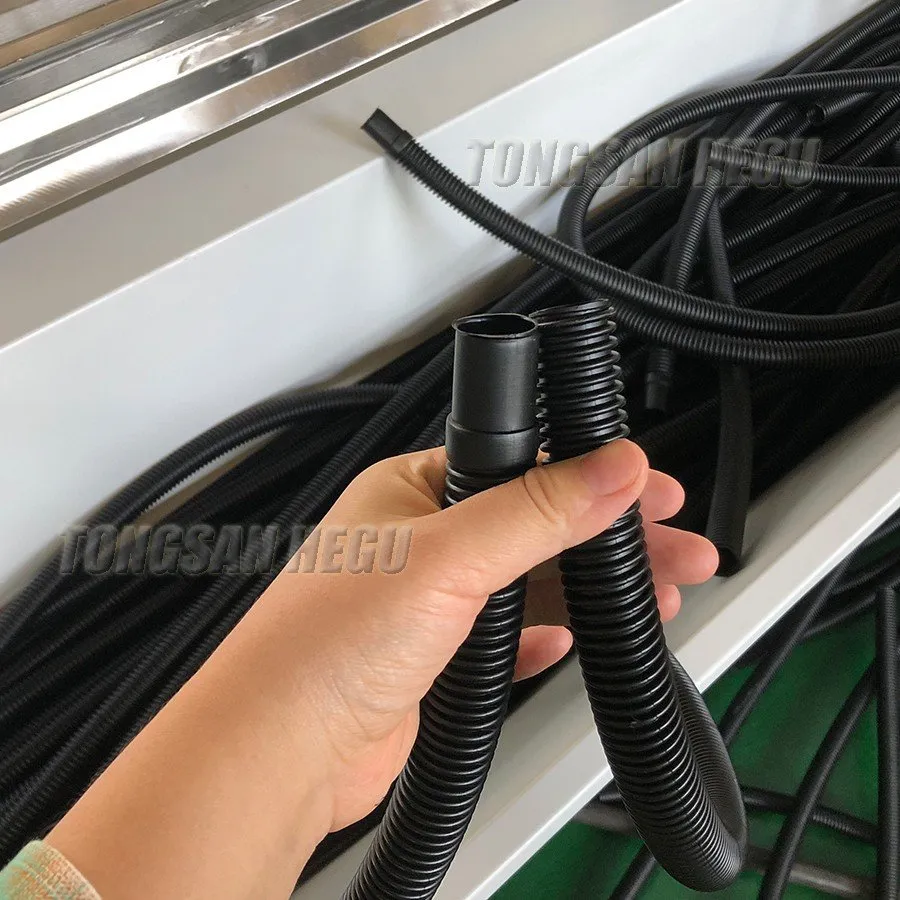

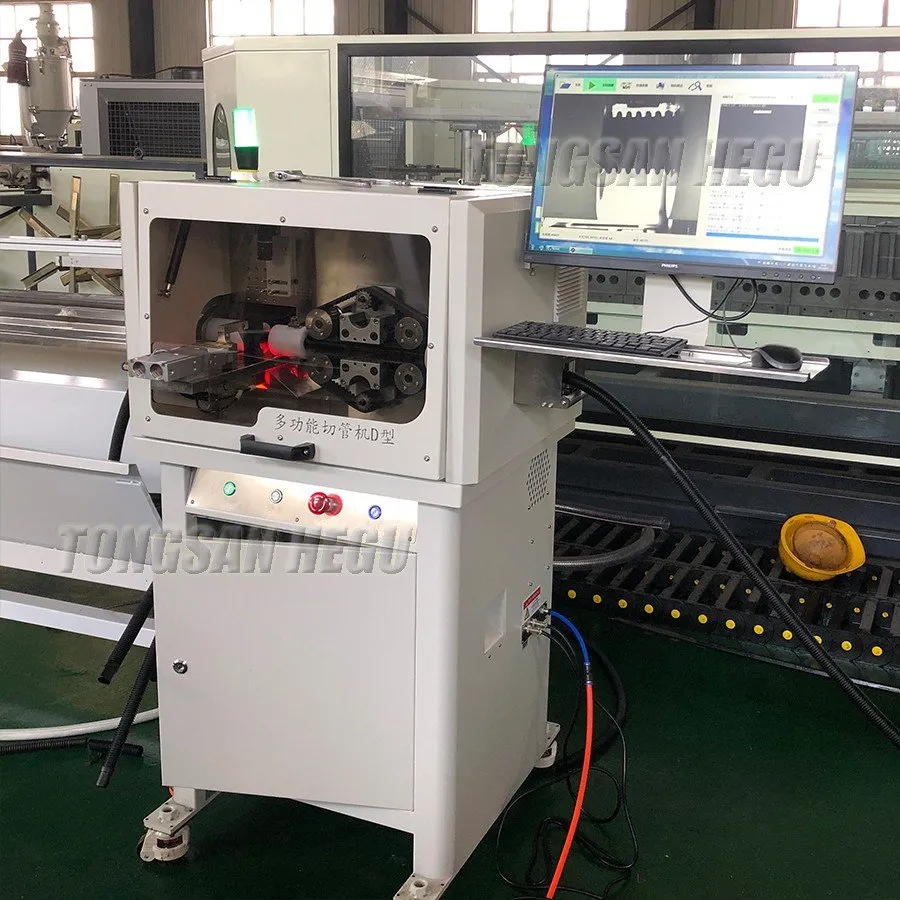

This corrugated pipe machine is suitable for making shisha hookah hose, it can use LLDPE material for making transparent corrugate dhose for shisha hookah, we also can equip the automatic cutting machine for cut the shisha hookah hose into required length.

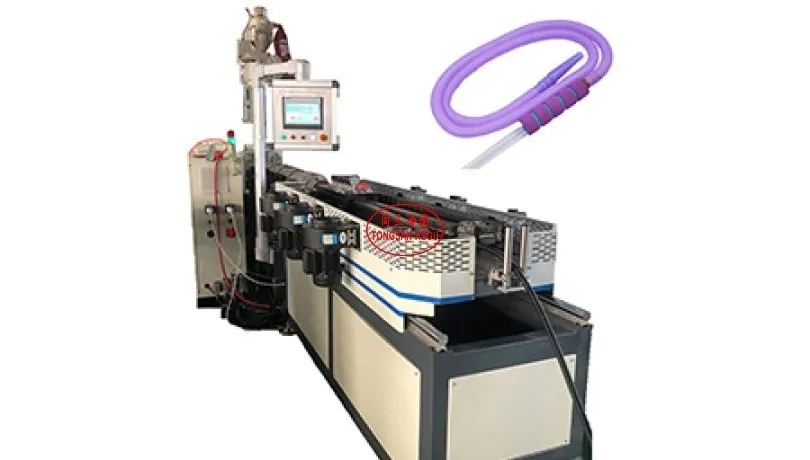

Shisha Hookah Corrugated Hose Making Machine

Model	SJ50 corrugated pipe machine
Pipe size	ID9-OD32mm
Production speed	4-12 meter/minute
Mold blocks	50 pairs/set
Mold material	40Cr

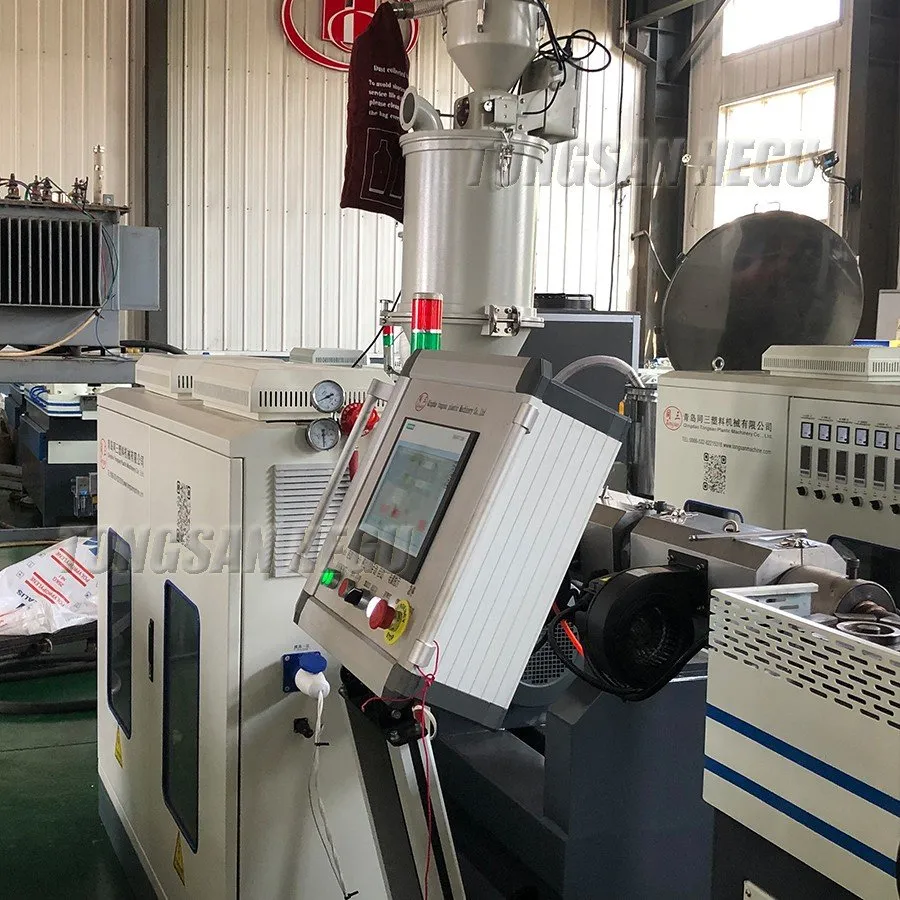

Extruder	SJ50 single screw extruder
Motor power	15 KW
Material loader	Automatic vacuum loader
Material dryer	Automatic drying hopper

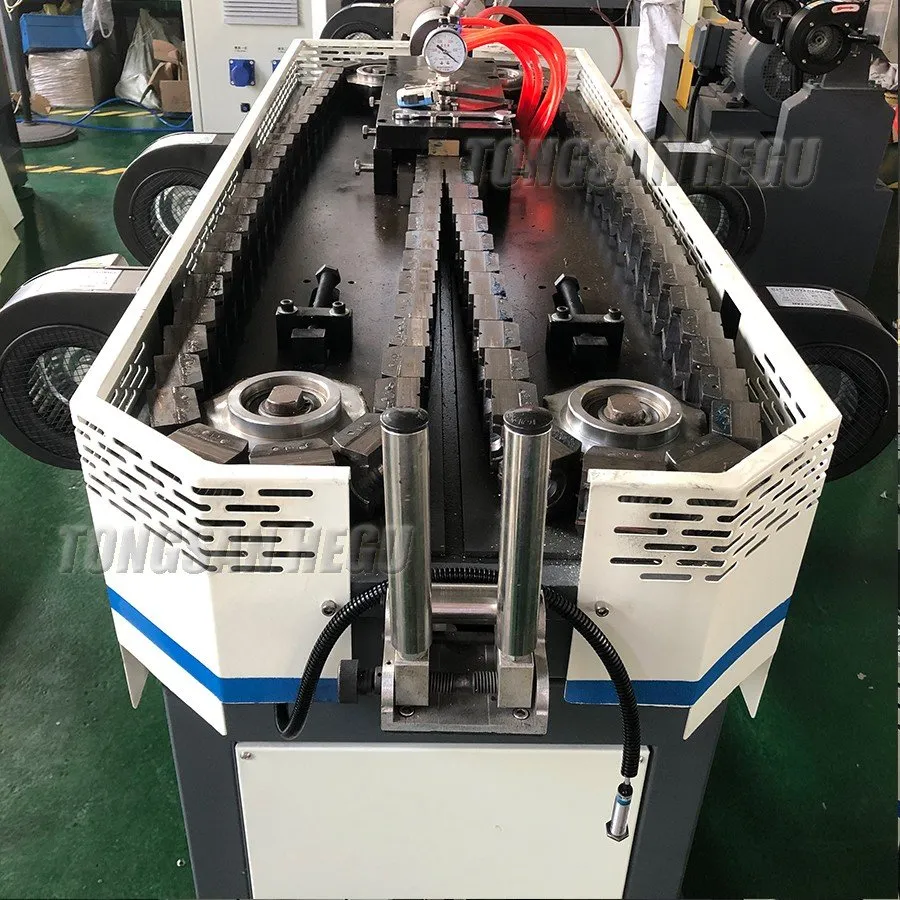

Forming machine	Air cooling *4 fans

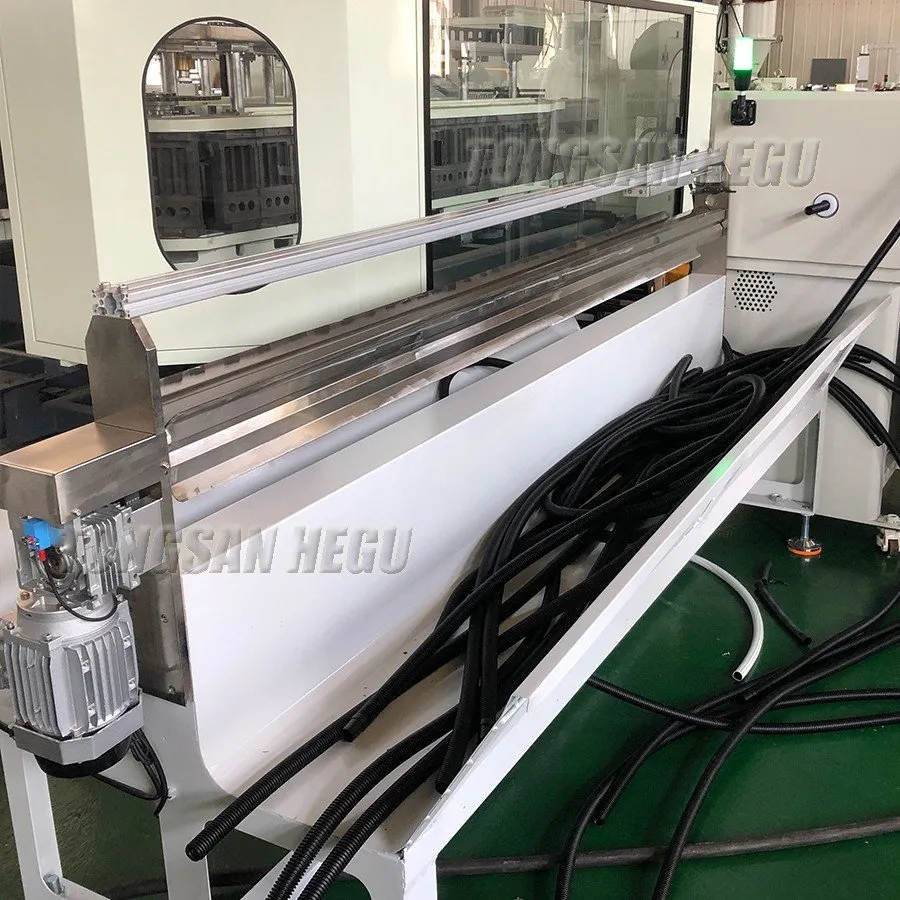

Cutting mode	Manual cutting or cutting machine

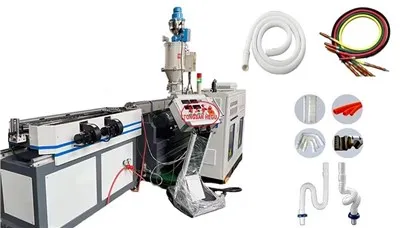

Vacuum Forming Single Wall Corrugated Pipe With Joint Extrusion Line

The line can produce special design single wall corrugated pipe with vacuum forming mode. The forming machine equips with vacuum system. Specially designed for shisha hose/magic pipe/joint corrugated pipe.

Pipe diameter	Production speed	Extruder Model	Motor power
ID9-OD32mm	5-12m/min	SJ50/30	15kw
ID12-OD50mm	3-10m/min	SJ65/30	30kw
ID32-OD110mm	3-8m/min	SJ75/30	37kw

Normal Speed Single Wall Corrugated Pipe Extrusion Line

The line speed can up to 12m/min. The forming machine equips with air cooling system for cooling the molds and pipe.

Pipe diameter	Production speed	Extruder Model	Motor power
ID5.5-OD16mm	6-8m/min	SJ45/28	7.5kw
ID9-OD32mm	5-12m/min	SJ50/30	15kw
ID12-OD50mm	3-10m/min	SJ65/30	30kw
ID16-OD63mm	3-10/min	SJ65/30	30kw
ID32-OD110mm	3-8m/min	SJ75/30	37kw

High Speed Single Wall Corrugated Pipe Extrusion Line

The line speed can up to 30m/min. High speed forming machine equips with automatic lubrication system and closed forced water-cooling system to achieve high-speed production. The corrugated pipe molds includes single cavity molds and double cavity molds.
