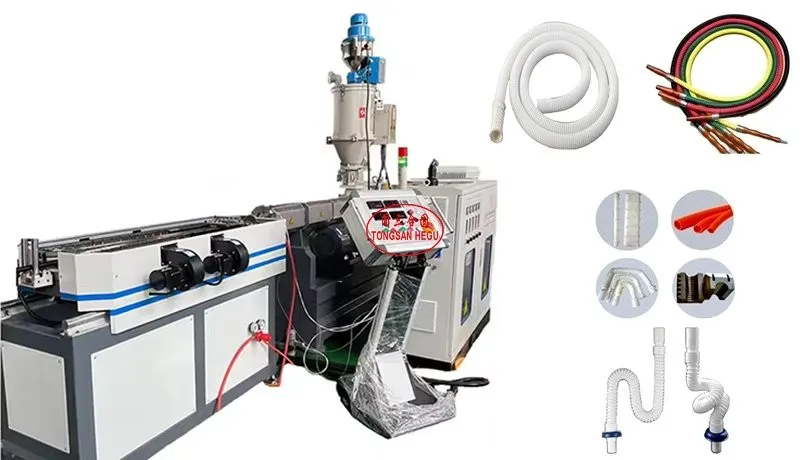

SJDBGZ series plastic single wall corrugated pipe extrusion line can produce PP/PE/EVA/PVC/PA corrugated pipe.
Corrugated pipe produced by our machine has the features of high production speed, even corrugated shape,straight pipe seam, andsmooth surface.
By equipped with vacuum pump and vacuum type mould,it can produce difffernt use corrugated pipe with joint(wash basin drain pipe,air conditioner pipe, shisha hookah hose pipe etc).
Customized Plastic Single Wall Corrugated Pipe Mold Block Manufacturer
01. Customized processing of plastic corrugated pipe mold
Our company has professional mold designers and mold processing equipment. Various corrugated forming modules, heterosexual bellows modules, and corrugated mold lettering can be processed according to customer requirements. The module uses special die steel,which has high hardness and strong wear resistance.
02. Single screw extruder modification
The single-screw extruder of the melt-blown cloth equipment can be converted into a corrugated pipe production equipment with our corrugated pipe forming machine. We will provide a free modification project report and send professional engineers to the customer's factory to guide the installation and commissioning, and provide worry-free after-sales .
03. Domestic trade and export business of the whole machine
Our company has single-wall and double-wall PP, PE, EVA, PVC corrugated pipe production equipment of various specifications, all components adopt export configuration, Siemens motors, ABB frequency converters, Omron temperature controllers, and engineers can be arranged for debugging abroad.

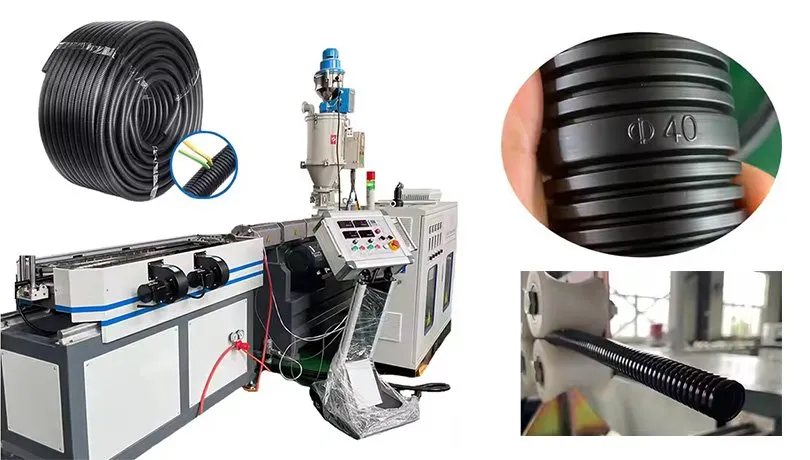

1. Plastic single wall corrugated pipe machine can produce PP PE PA PVC EAV corrugated pipe which is widely used as wire harness protective pipe for car and machine tool
2. Equip with vacuum pump, the machine can produce washing machine pipe, air conditioner pipe, hookah pipe, wash basin drain pipe,medical pipe
3. Mold transmission by gear
4. Water cooling, wind cooling
|
model |
pipe diameter |
extruder model |
motor powder |
production speed |
mold pairs |
optional vacumm pump |
|
SJDBGZ-14 |
5-14mm |
SJ-45 |
11kw |
6-8m/min |
42 |
|
|
SJDBGZ-32 |
10-32mm |
SJ-50 |
15kw |
5-12m/min |
50 |
1.5kw |
|
SJDBGZ-50 |
16-50mm |
SJ-65 |
30kw |
3-10m/min |
50 |
2.2kw |
|
SJDBGZ-63 |
16-63mm |
SJ-65 |
30kw |
3-10m/min |
50 |
2.2kw |
|
SJDBGZ-110 |
32-110mm |
SJ-75 |
37kw |
3-6m/min |
72 |
5.5kw |
|
SJDBGZ-160 |
50-160mm |
SJ-90 |
55KW |
2-5m/min |
72 |
7.5kw |
Details Images
Single Screw Extruder
1. product material: PP PE PA EVA PVC garanule
2. extruder model: SJ45 SJ50 SJ65 SJ75 SJ90
3. motor power: 11-55kw
4. motor brand: SIEMENS
5. inverter brand: ABB
6. temperature controller brand: OMRON
7. heater material: cast aluminum
8. vacuum loading device: included
9. hopper dryer: include
Double Screw Extruder
1. product material: PVC powder
2. extruder model: SJSZ51/105 SJMS65/132
3. motor power: 22kw 37kw
4. motor brand: SIEMENS
5. inverter brand: ABB
6. temperature controller brand: OMRON
7. heater material: ceramic
8. material loading device: included
Forming Machine
1. forming type: blowing
2. cooling type: water and wind
3. fan quantity: 4 sets or 6 sets or 8 sets
4.lubricant: oil
5. transmission: gear
6. application: wire harness protective pipe for car or machine tool
Vacuum Forming Machine
1. forming type: vacuum
2. cooling type: water and wind
3. fan quantity: 4 sets or 6 sets or 8 sets
4. lubricant: oil
5. transmission: gear
6. application: washing machine pipe, wash basin pipe, air conditioner pipe, hookah pipe, medical pipe
20-30m/min High Speed Forming Machine
1. speed: 20-30m/min
2. forming type: blowing
3. vacuum optional
4. cooling type: water
5. lubricant: oil by automatally
6. transmission: gear
7. mold cavity: single or double
Corrugated Pipe Mold
1. mould quantity: 52 or 72 pairs or customerized
2. cavity: single/double/three cacity or customerized
3. mould making: our own Germany CNC machine
4. mould material: 40Cr
Vacuum Corrugated Pipe Mould
There shall be have vacuum mold optional according to product shape such as shisha pipe, air conditioner pipe....
Double working position winder
Winding station: double station
Winding method: automatic winding 50m/roll,100m/roll
Double working position winding machine
Meter counting: automatic counting
Winding meters: customized
Steel wire feeding device is optional
Entrance steel wire to pipe inside
