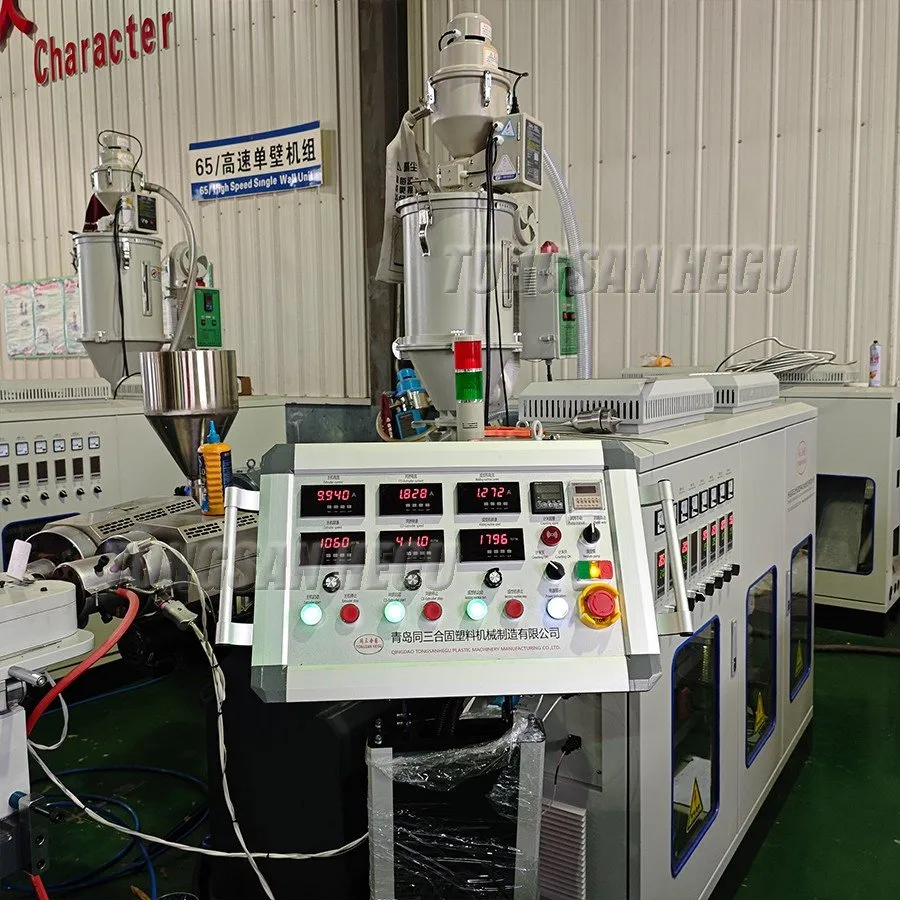

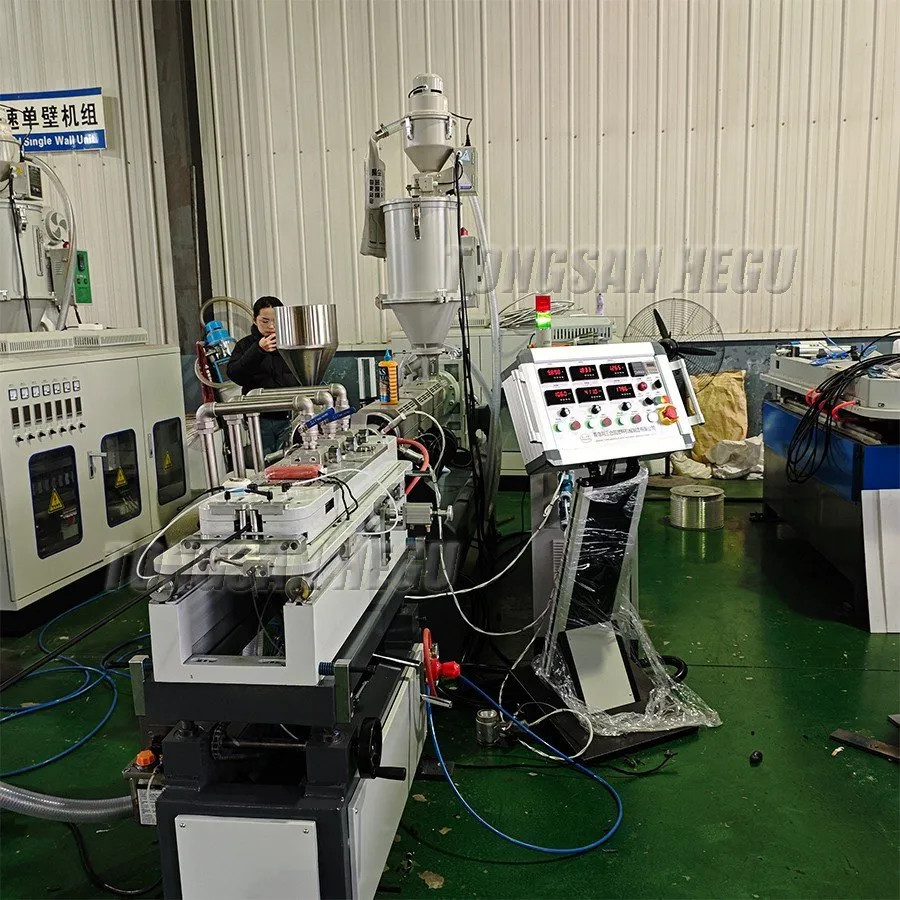

Plastic Corrugator Pipe Extruder

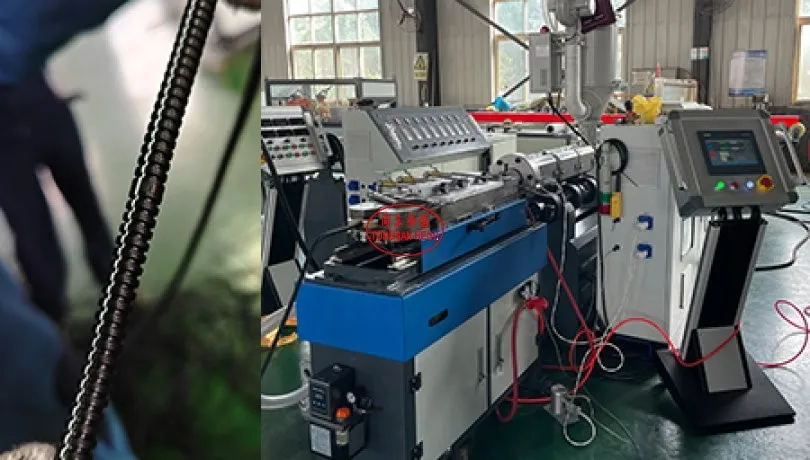

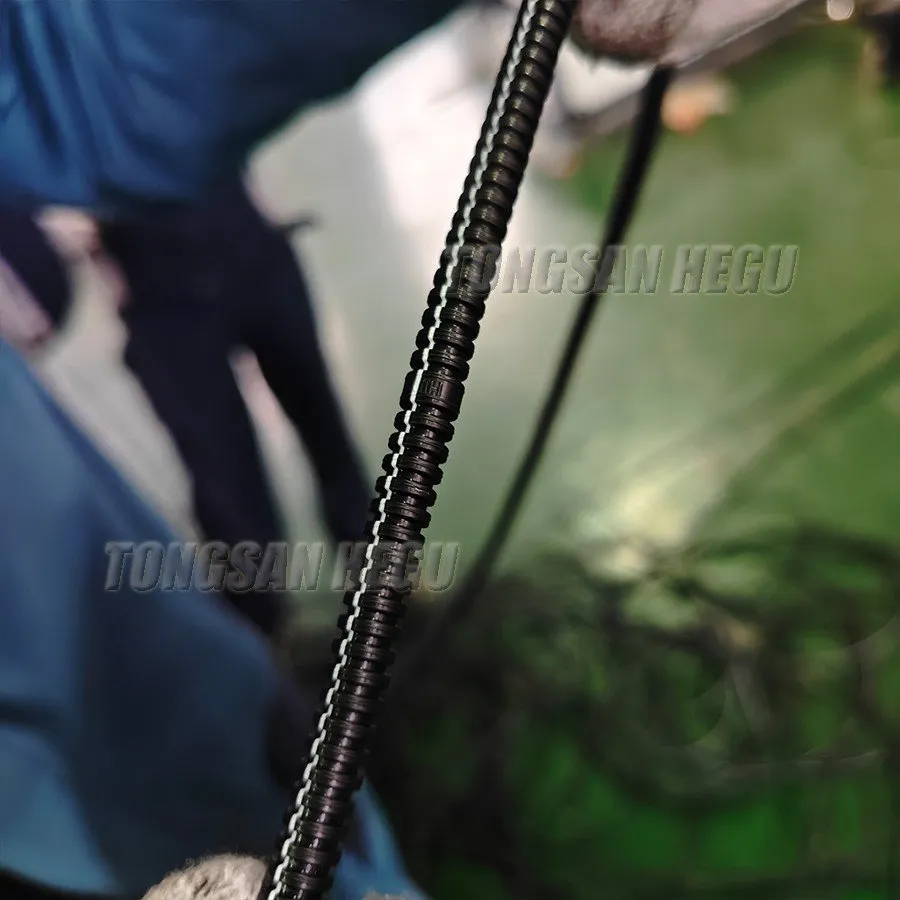

ID5mm-OD14mm high speed single wall corrugated pipe extrusion line can produce PE, PP, PVC, PA corrugated pipes in 20 meters per minute.

By technical upgrade, replaced the traditional chain type forming machine, the pipe surface and precision is improved significantly.

By equipped with vacuum pump and vacuum type mould, it can produce different use corrugated pipe with joint (wash basin drain pipe, air conditioner pipe, hookah pipe etc)

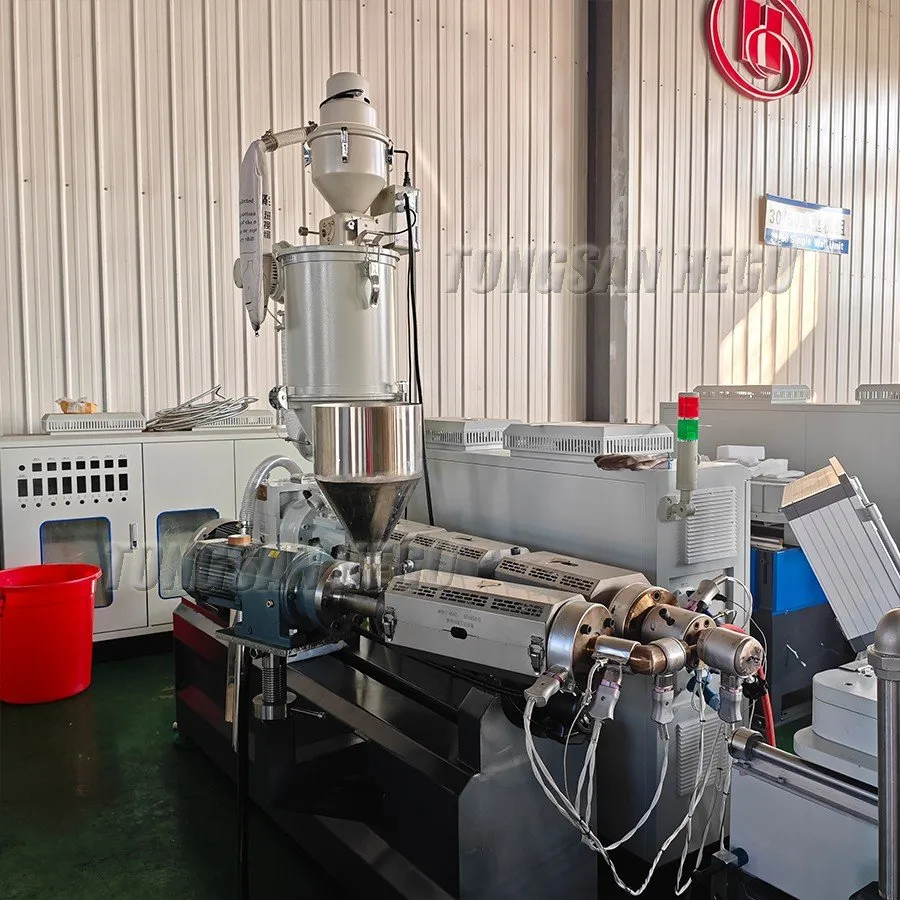

This high speed corrugated pipe production line adopts gear transmission, mould use 40Cr material, Nitriding process. Mould is running in the track, with automatic oil lubrication system and closed forced water cooling system, it can achieve high speed production.

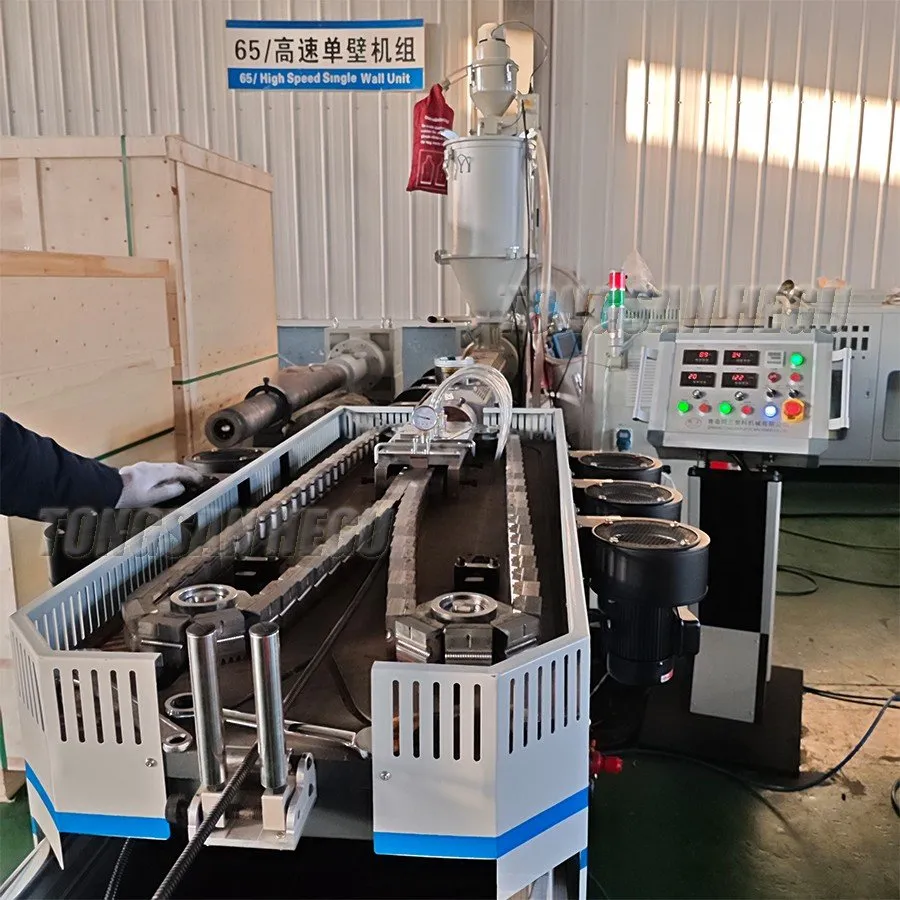

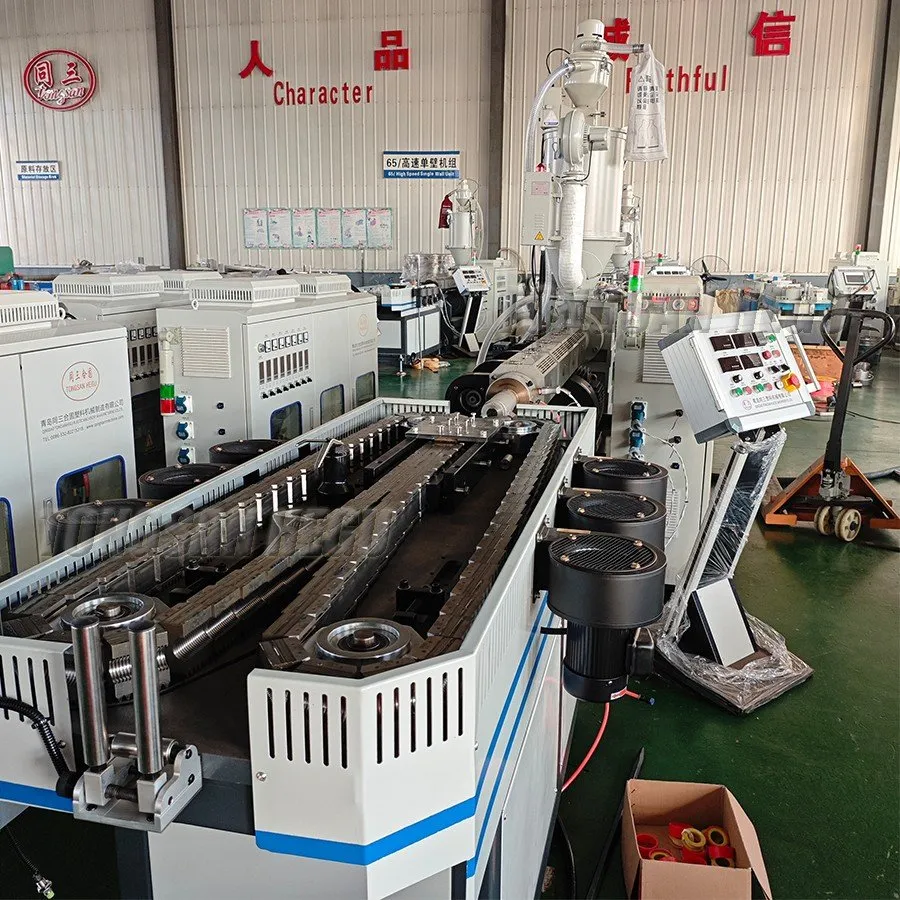

The line speed can up to 30m/min. High speed forming machine equips with automatic lubrication system and closed forced water-cooling system to achieve high-speed production. The corrugated pipe molds includes single cavity molds and double cavity molds.

The line speed can up to 12m/min. The forming machine equips with air cooling system for cooling the molds and pipe.

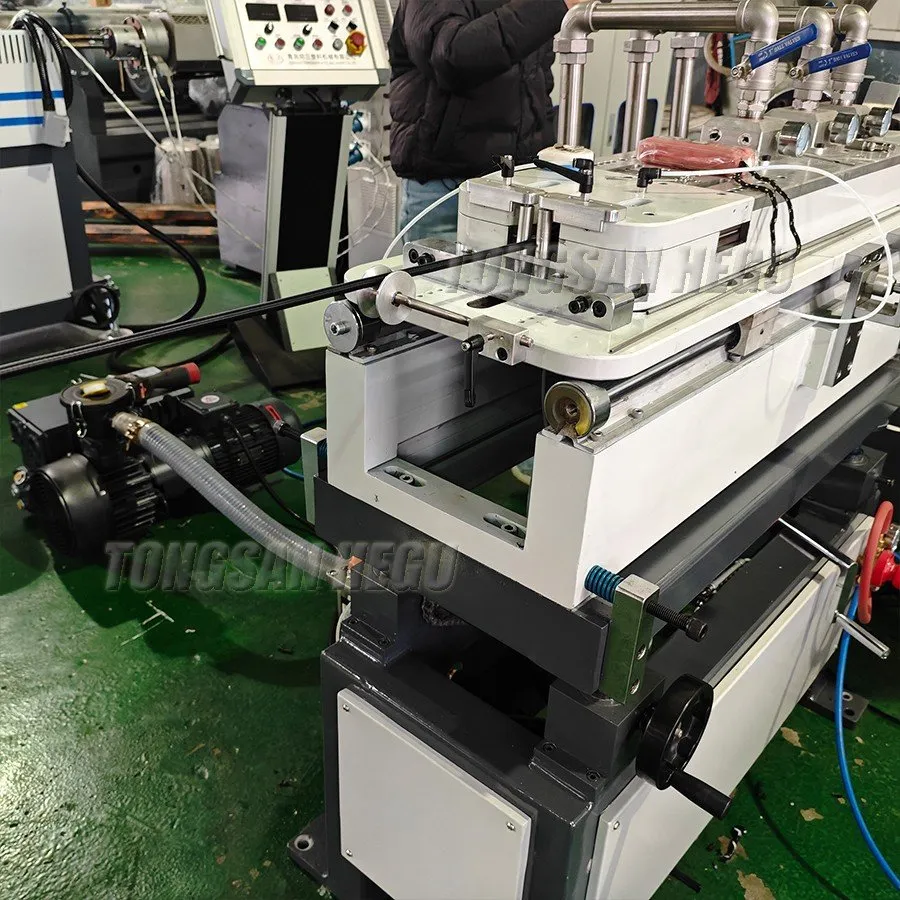

The line can produce special design single wall corrugated pipe with vacuum forming mode. The forming machine equips with vacuum system. Specially designed for shisha hose/magic pipe/joint corrugated pipe.

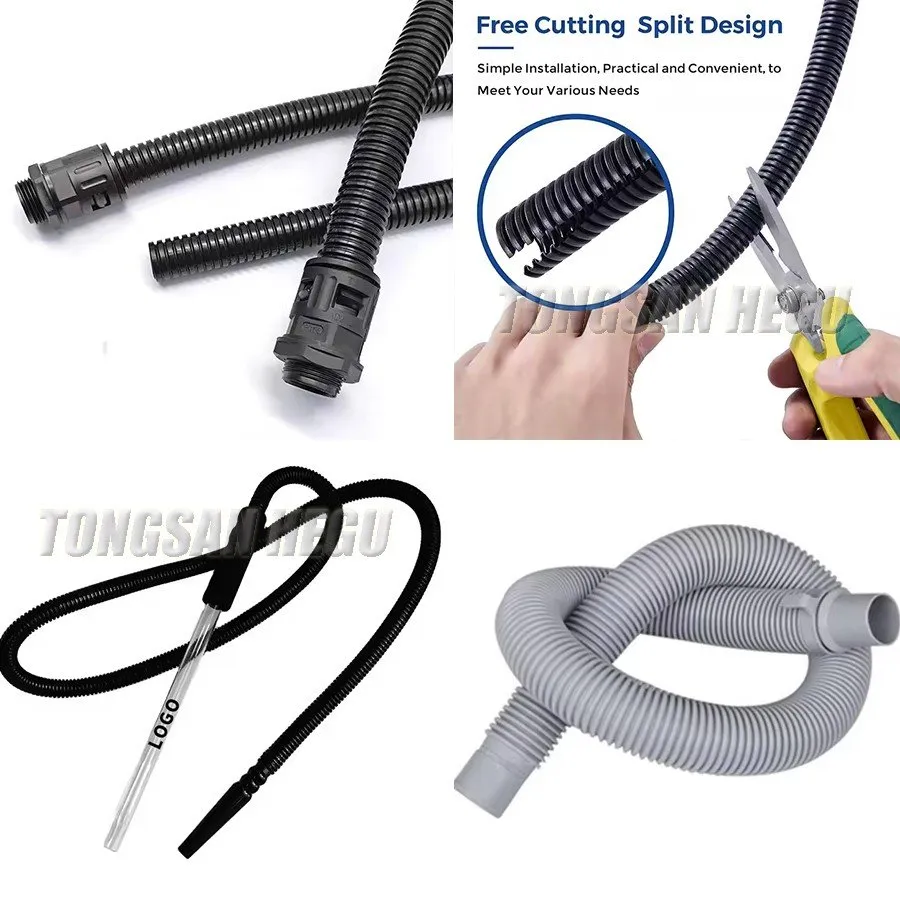

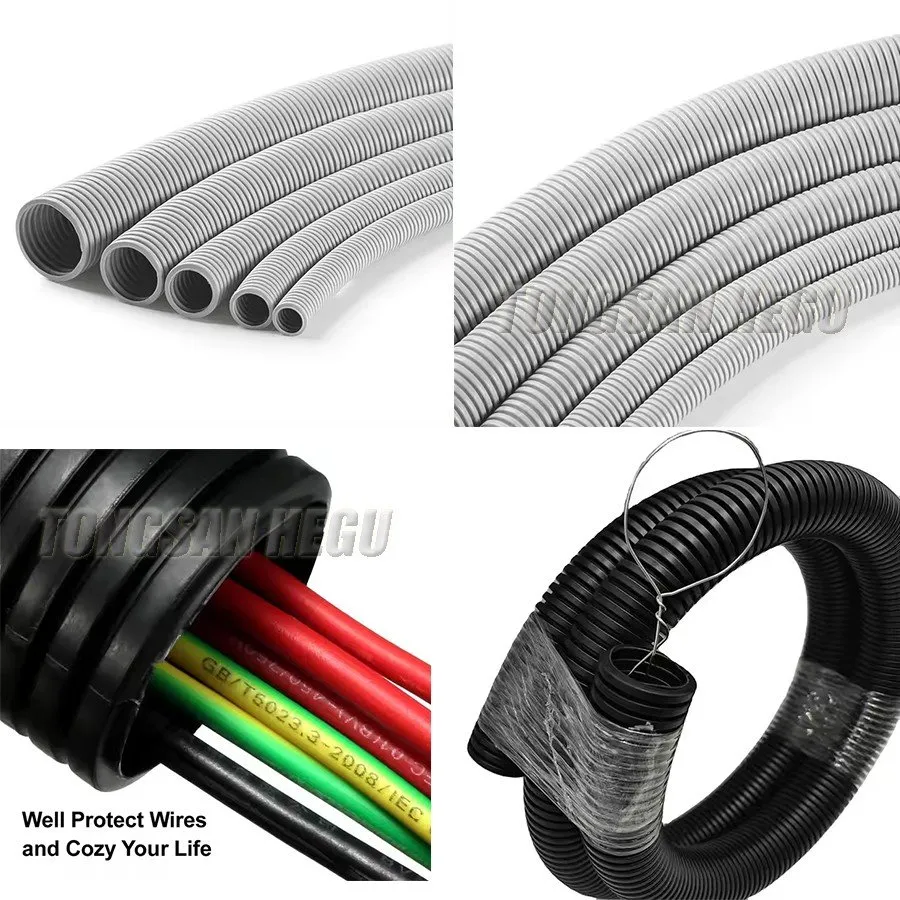

Final product widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.

2. Corrugated pipe has lighter weight, save material, lower energy consumption, cheaper advantage.

3. Corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity.

4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.

5. Pipe with corrugation form can increase the load resistance of the pipe to the soil. At the same time, do not affect its flexibility, so that it can be laid on the uneven ground continuously.

6. Easily to connect and good in tightness. Easily handing, easily install, reduce the labor intensity, reduce working period.

7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.

8. Safe insulation, is an ideal material for the electric wire conduit.
